IPsec-VPP Case

This guide provides a comprehensive, step-by-step tutorial for establishing secure IP Security (IPSec) VPN tunnels on the Asterfusion ET2500 Open Intelligent Gateway. By leveraging the high-performance VPP data plane, you will learn how to build encrypted networks that are both secure and scalable.

What This Guide Will Accomplish

Section titled “What This Guide Will Accomplish”

By following this guide, you will learn how to deploy robust VPN architectures ranging from simple point-to-point connections to complex multi-site enterprise networks. The scenarios covered are:

  • Scenario 1: Site-to-Site VPN (Direct Connection) Establishing a standard point-to-point tunnel between two gateways.
  • Scenario 2: Hub-and-Spoke VPN (Multi-Site) Configuring a central Hub gateway to accept concurrent connections from multiple Branch offices.
  • Scenario 3: NAT Traversal (NAT-T) Deploying a branch gateway behind a NAT device using ID Masquerading.

***## Scenario 1: Site-to-Site VPN (Direct Connection)

1. Scenario Overview

Section titled “1. Scenario Overview”

We establish a standard tunnel between two sites. To optimize the process, we assign distinct roles:

-** Site B (Responder):** Configures parameters and passively waits. -** Site A (Initiator):** Configures parameters and** triggers **the negotiation by binding the policy to the interface.

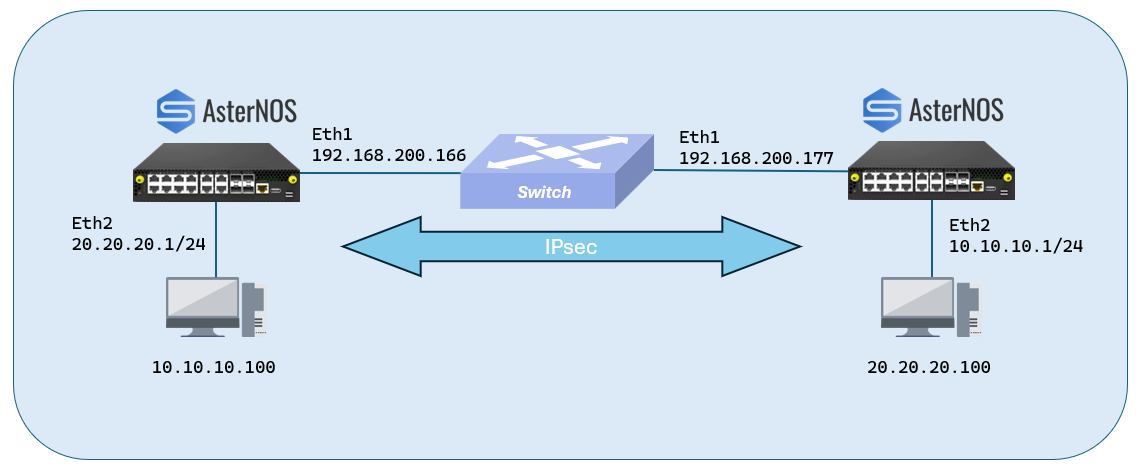

2. Network Topology Plan

Section titled “2. Network Topology Plan”

** Role **** Device **** WAN IP (Underlay)**** LAN IP (Overlay)**** Protected Subnet **
** Site A (Initiator)**AsterNOS192.168.200.16620.20.20.120.20.20.0/24
** Site B (Responder)**AsterNOS192.168.200.17710.10.10.110.10.10.0/24

3. Configuration Steps

Section titled “3. Configuration Steps”

Step 1: Initialize Network (Interfaces & Routing)

Section titled “Step 1: Initialize Network (Interfaces & Routing)”
Terminal window
sonic# configure terminal
 # Example on Site A (.166):
sonic(config)# interface ethernet 1
sonic(config-if-1)# ip address 192.168.200.166/24
sonic(config-if-1)# exit


sonic(config)# ip route 0.0.0.0/0 192.168.200.1
 # (Perform symmetrical configuration on Site B .177)
sonic(config)# interface ethernet 1
sonic(config-if-1)# ip address 192.168.200.177/24
sonic(config-if-1)# exit


sonic(config)# ip route 0.0.0.0/0 192.168.200.1

Step 2: Configure Site B (Responder - .177)

Section titled “Step 2: Configure Site B (Responder - .177)”

Define the policy globally, then bind it to the interface to enable listening.

Terminal window
Define Global Policy
sonic(config)# ipsec test
sonic(config-ipsec-test)# shared_key_mic string test1234
sonic(config-ipsec-test)# ike crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96 dh modp-2048
sonic(config-ipsec-test)# ike local type ip4 data 192.168.200.177
sonic(config-ipsec-test)# ike remote type ip4 data 192.168.200.166
 # Traffic Selector (Local: 10.x <-> Remote: 20.x)
sonic(config-ipsec-test)# ike traffic_selector local ip4 addr_start 10.10.10.0 addr_end 10.10.10.255
sonic(config-ipsec-test)# ike traffic_selector remote ip4 addr_start 20.20.20.0 addr_end 20.20.20.255
sonic(config-ipsec-test)# sa crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96
sonic(config-ipsec-test)# sa tunnel ip4 src_ip 192.168.200.177 dst_ip 192.168.200.166 next_hop 192.168.200.166 remote_ip 20.20.20.0/24 shared_interface Ethernet1
sonic(config-ipsec-test)# exit

Step 3: Configure Site A (Initiator - .166)

Section titled “Step 3: Configure Site A (Initiator - .166)”

Define the policy globally.** The final step of binding it to the interface triggers the negotiation.**```bash

  1. Define Global Policy sonic(config)# ipsec test sonic(config-ipsec-test)# shared_key_mic string test1234 sonic(config-ipsec-test)# ike crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96 dh modp-2048 sonic(config-ipsec-test)# ike local type ip4 data 192.168.200.166 sonic(config-ipsec-test)# ike remote type ip4 data 192.168.200.177

Traffic Selector (Local: 20.x <-> Remote: 10.x)

Section titled “Traffic Selector (Local: 20.x <-> Remote: 10.x)”

sonic(config-ipsec-test)# ike traffic_selector local ip4 addr_start 20.20.20.0 addr_end 20.20.20.255 sonic(config-ipsec-test)# ike traffic_selector remote ip4 addr_start 10.10.10.0 addr_end 10.10.10.255 sonic(config-ipsec-test)# sa crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96 sonic(config-ipsec-test)# sa tunnel ip4 src_ip 192.168.200.166 dst_ip 192.168.200.177 next_hop 192.168.200.177 remote_ip 10.10.10.0/24 shared_interface Ethernet1 sonic(config-ipsec-test)# exit

2. Bind to WAN Interface (Triggers Connection)

Section titled “2. Bind to WAN Interface (Triggers Connection)”

sonic(config)# interface ethernet 1 sonic(config-if-1)# ipsec test peer ip4 192.168.200.177 sonic(config-if-1)# exit

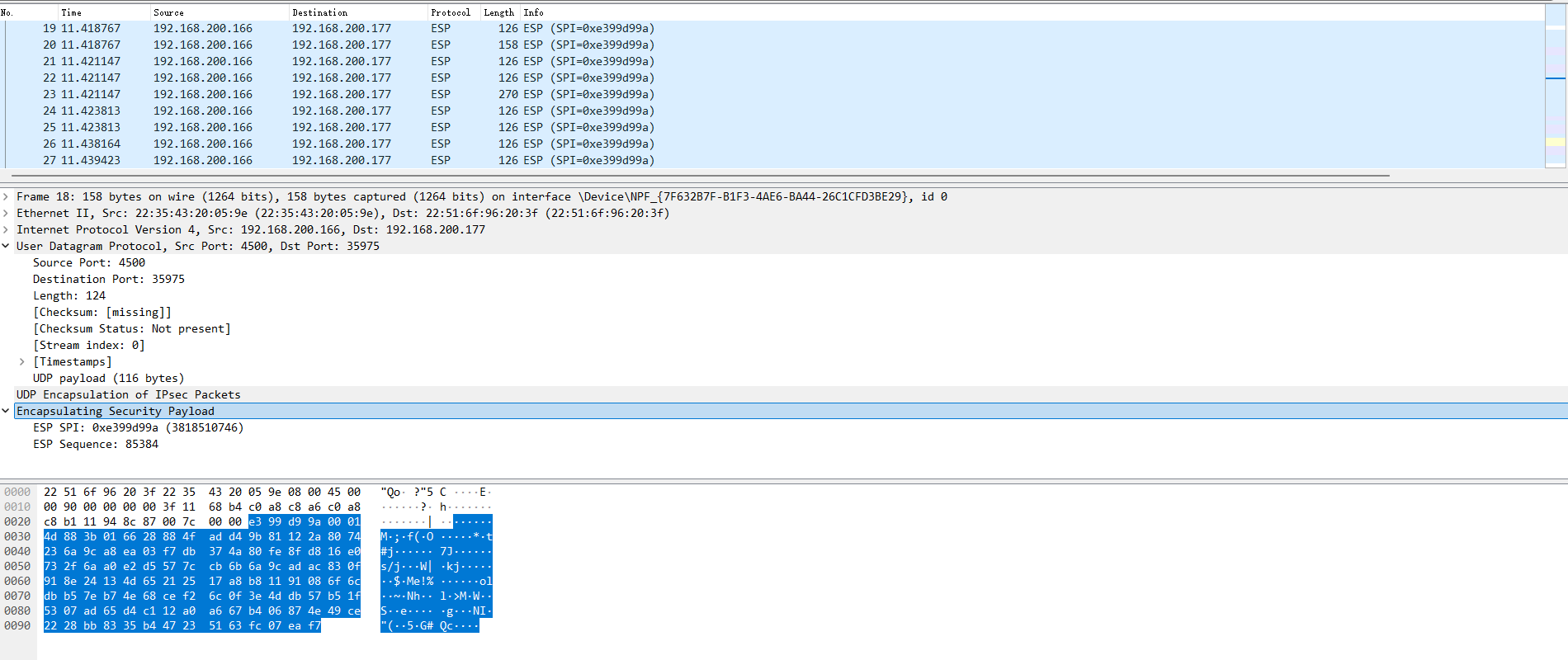

### 4. Verification


![](/media/archbee/qlA5uqgHbuAo1T1gPemPA-20260130-033607.png)***


## Scenario 2: Hub-and-Spoke VPN (Multi-Site)


### 1. Scenario Overview


- **Hub (.188) - Responder:** Configures policies globally and binds them to the interface to listen.
- **Spokes (.166 / .177) - Initiators:** Configure policies globally and **trigger negotiation** by binding to the interface.

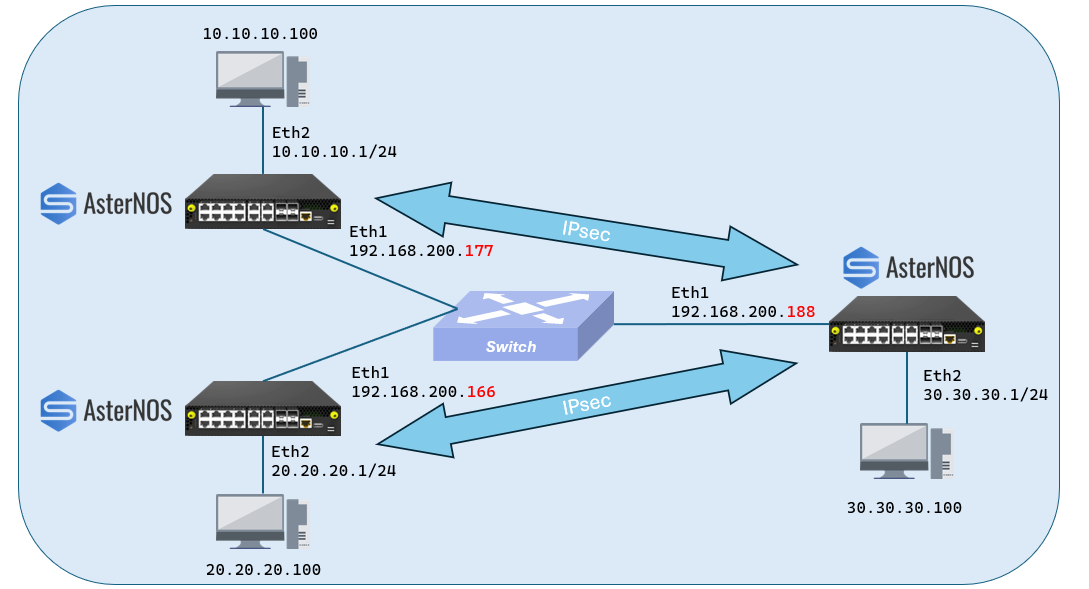

### 2. Network Topology Plan


![](/media/archbee/WRTaiKT-8zSOyCHG-mLNu-20260130-033644.png)


| **Role** | **Device** | **WAN IP (Underlay)** | **LAN IP (Overlay)** | **Protected Subnet** |
| -------- | ---------- | --------------------- | -------------------- | -------------------- |
| Hub (HQ) | AsterNOS   | 192.168.200.188       | 30.30.30.1           | 30.30.30.0/24        |
| Spoke 1  | AsterNOS   | 192.168.200.166       | 20.20.20.1           | 20.20.20.0/24        |
| Spoke 2  | AsterNOS   | 192.168.200.177       | 10.10.10.1           | 10.10.10.0/24        |


### 3. Configuration Steps


### Step 1: Initialize Hub Network (.188)


```bash
WAN
sonic(config)# interface ethernet 1
sonic(config-if-1)# ip address 192.168.200.188/24
sonic(config-if-1)# no shutdown
sonic(config-if-1)# exit
 # LAN
sonic(config)# interface ethernet 2
sonic(config-if-2)# ip address 30.30.30.1/24
sonic(config-if-2)# no shutdown
sonic(config-if-2)# exit
 # Route
sonic(config)# ip route 0.0.0.0/0 192.168.200.1
sonic(config)# exit

Step 2: Configure Hub (Responder - .188)

Section titled “Step 2: Configure Hub (Responder - .188)”

Define two separate policies (one for each spoke) and bind both to the WAN interface.

Terminal window
--- Policy 1: For Spoke 1 ---
sonic(config)# ipsec peer_spoke1
sonic(config-ipsec-peer_spoke1)# shared_key_mic string test1234
sonic(config-ipsec-peer_spoke1)# ike crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96 dh modp-2048
sonic(config-ipsec-peer_spoke1)# ike local type ip4 data 192.168.200.188
sonic(config-ipsec-peer_spoke1)# ike remote type ip4 data 192.168.200.166
 # Selector: Hub (30.x) <-> Spoke 1 (20.x)
sonic(config-ipsec-peer_spoke1)# ike traffic_selector local ip4 addr_start 30.30.30.0 addr_end 30.30.30.255
sonic(config-ipsec-peer_spoke1)# ike traffic_selector remote ip4 addr_start 20.20.20.0 addr_end 20.20.20.255
sonic(config-ipsec-peer_spoke1)# sa crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96
sonic(config-ipsec-peer_spoke1)# sa tunnel ip4 src_ip 192.168.200.188 dst_ip 192.168.200.166 next_hop 192.168.200.166 remote_ip 20.20.20.0/24 shared_interface Ethernet1
sonic(config-ipsec-peer_spoke1)# exit
 # --- Policy 2: For Spoke 2 ---
sonic(config)# ipsec peer_spoke2
sonic(config-ipsec-peer_spoke2)# shared_key_mic string test1234
 # ... (Same crypto settings) ...
sonic(config-ipsec-peer_spoke2)# ike local type ip4 data 192.168.200.188
sonic(config-ipsec-peer_spoke2)# ike remote type ip4 data 192.168.200.177
 # Selector: Hub (30.x) <-> Spoke 2 (10.x)
sonic(config-ipsec-peer_spoke2)# ike traffic_selector local ip4 addr_start 30.30.30.0 addr_end 30.30.30.255
sonic(config-ipsec-peer_spoke2)# ike traffic_selector remote ip4 addr_start 10.10.10.0 addr_end 10.10.10.255
sonic(config-ipsec-peer_spoke2)# sa crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96
sonic(config-ipsec-peer_spoke2)# sa tunnel ip4 src_ip 192.168.200.188 dst_ip 192.168.200.177 next_hop 192.168.200.177 remote_ip 10.10.10.0/24 shared_interface Ethernet1
sonic(config-ipsec-peer_spoke2)# exit

Step 3: Configure Spoke 1 (Initiator - .166)

Section titled “Step 3: Configure Spoke 1 (Initiator - .166)”
Terminal window
1. Global Policy
sonic(config)# ipsec to_hub
sonic(config-ipsec-to_hub)# shared_key_mic string test1234
sonic(config-ipsec-to_hub)# ike crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96 dh modp-2048
sonic(config-ipsec-to_hub)# ike local type ip4 data 192.168.200.166
sonic(config-ipsec-to_hub)# ike remote type ip4 data 192.168.200.188
sonic(config-ipsec-to_hub)# ike traffic_selector local ip4 addr_start 20.20.20.0 addr_end 20.20.20.255
sonic(config-ipsec-to_hub)# ike traffic_selector remote ip4 addr_start 30.30.30.0 addr_end 30.30.30.255
sonic(config-ipsec-to_hub)# sa crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96
sonic(config-ipsec-to_hub)# sa tunnel ip4 src_ip 192.168.200.166 dst_ip 192.168.200.188 next_hop 192.168.200.188 remote_ip 30.30.30.0/24 shared_interface Ethernet1
sonic(config-ipsec-to_hub)# exit
 # 2. Interface Binding (Trigger)
sonic(config)# interface ethernet 1
sonic(config-if-1)# ipsec to_hub peer ip4 192.168.200.188
sonic(config-if-1)# exit

Step 4: Configure Spoke 2 (Initiator - .177)

Section titled “Step 4: Configure Spoke 2 (Initiator - .177)”
Terminal window
1. Global Policy
sonic(config)# ipsec to_hub
sonic(config-ipsec-to_hub)# shared_key_mic string test1234
sonic(config-ipsec-to_hub)# ike crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96 dh modp-2048
sonic(config-ipsec-to_hub)# ike local type ip4 data 192.168.200.177
sonic(config-ipsec-to_hub)# ike remote type ip4 data 192.168.200.188
sonic(config-ipsec-to_hub)# ike traffic_selector local ip4 addr_start 10.10.10.0 addr_end 10.10.10.255
sonic(config-ipsec-to_hub)# ike traffic_selector remote ip4 addr_start 30.30.30.0 addr_end 30.30.30.255
sonic(config-ipsec-to_hub)# sa crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96
sonic(config-ipsec-to_hub)# sa tunnel ip4 src_ip 192.168.200.177 dst_ip 192.168.200.188 next_hop 192.168.200.188 remote_ip 30.30.30.0/24 shared_interface Ethernet1
sonic(config-ipsec-to_hub)# exit
2. Interface Binding (Trigger)
sonic(config)# interface ethernet 1
sonic(config-if-1)# ipsec to_hub peer ip4 192.168.200.188
sonic(config-if-1)# exit

4. Verification

Section titled “4. Verification”

We verify the multi-site connectivity by generating traffic from each Spoke to the Hub and analyzing the captured packets using Wireshark.

A. Traffic Generation

Section titled “A. Traffic Generation”

Initiate continuous UDP traffic from both Branch Offices to the Headquarters using iperf3 to generate a stable stream of encrypted packets.

1. From Spoke 1 (PC A):

Terminal window
## Send 10Mbps UDP traffic to Hub LAN (30.30.30.100)
iperf3 -c 30.30.30.100 -u -b 10M -t 100

2. From Spoke 2 (PC B):

Terminal window
## Send 10Mbps UDP traffic to Hub LAN (30.30.30.100)
iperf3 -c 30.30.30.100 -u -b 10M -t 100

B. Capture Analysis (Tunnel 1: Spoke 1 -> Hub)

Section titled “B. Capture Analysis (Tunnel 1: Spoke 1 -> Hub)”

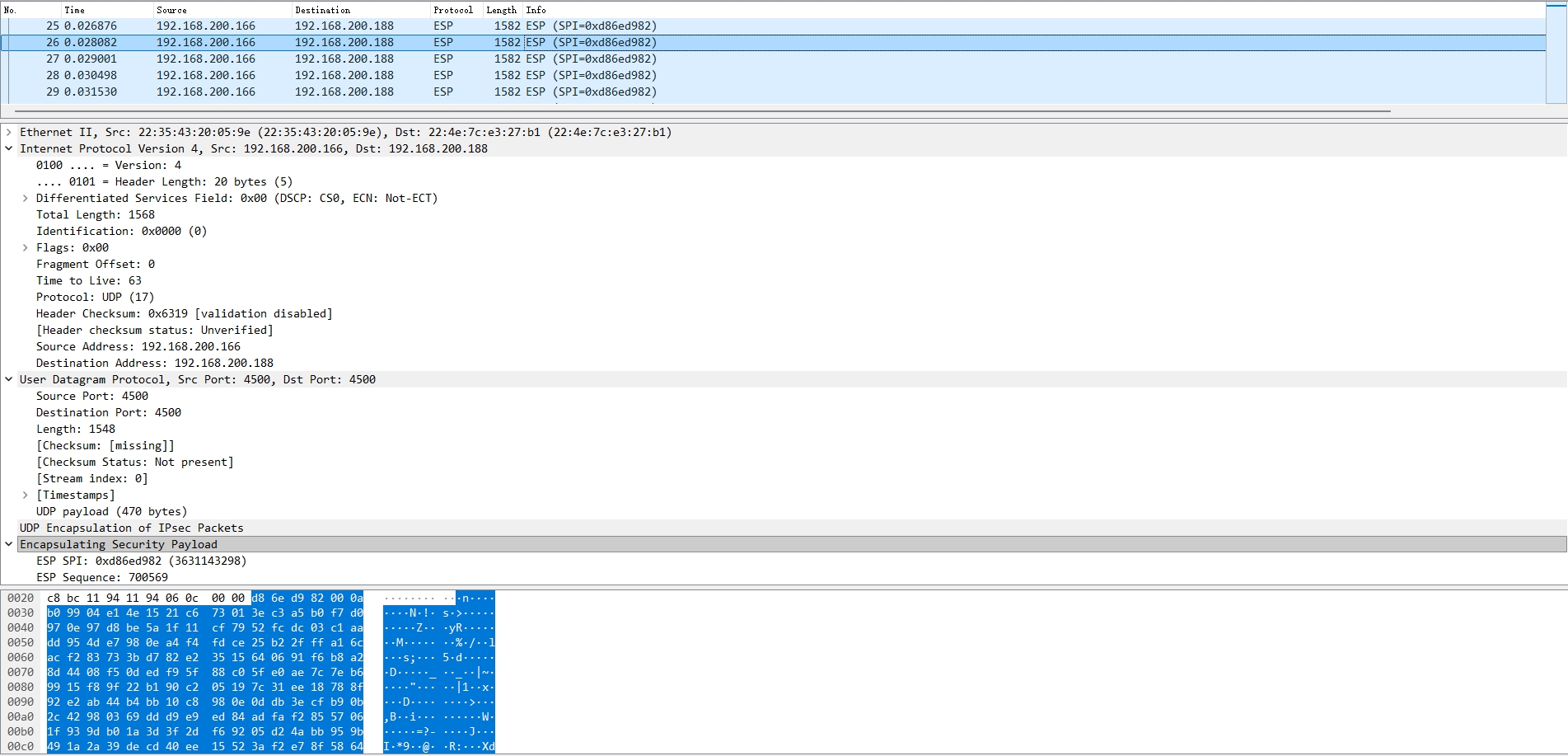

The screenshot below confirms that traffic from Spoke 1 (.166) is arriving at the Hub (.188) as encrypted ESP packets.

C. Capture Analysis (Tunnel 2: Spoke 2 -> Hub)

Section titled “C. Capture Analysis (Tunnel 2: Spoke 2 -> Hub)”

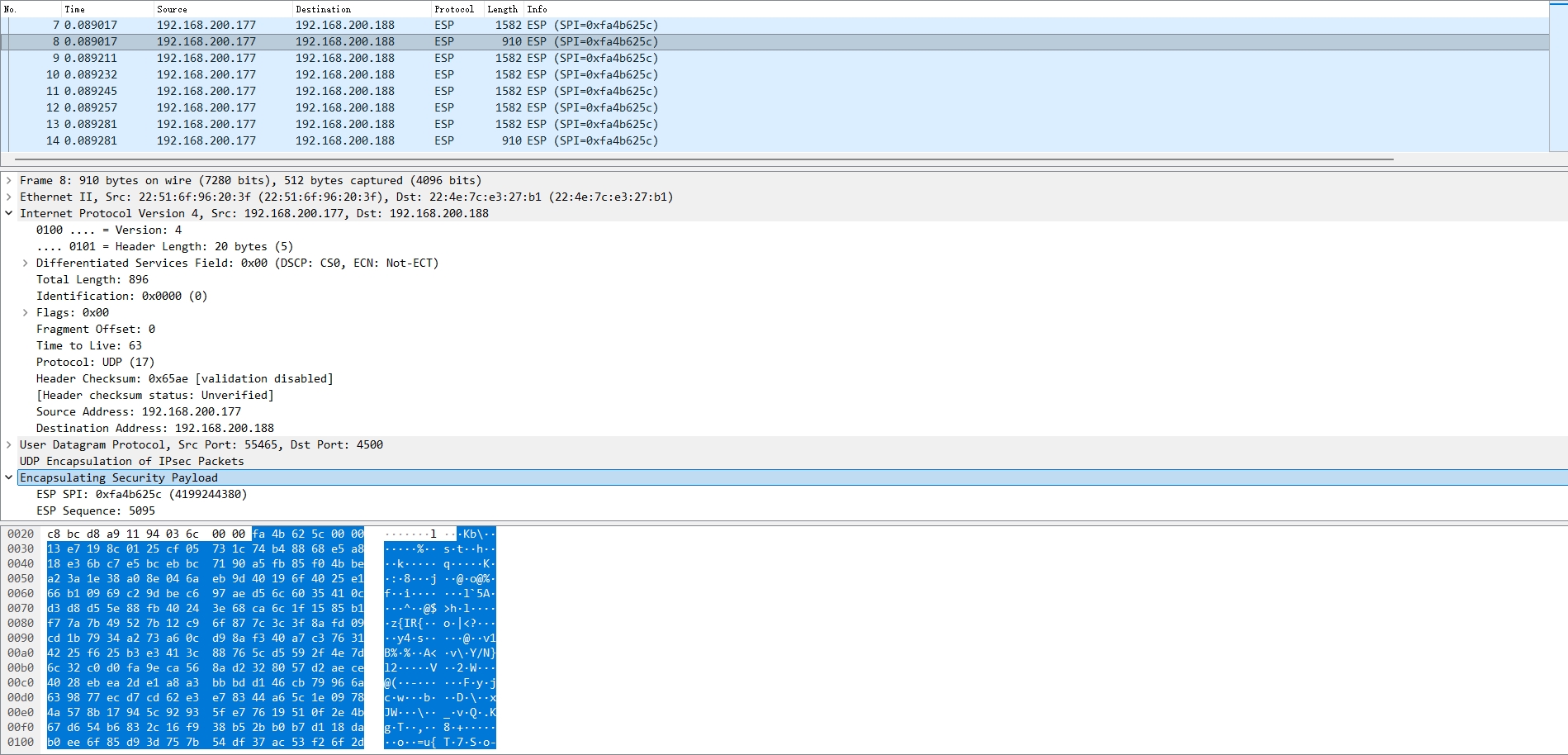

The screenshot below confirms that traffic from Spoke 2 (.177) is also arriving at the Hub (.188) as a distinct stream of encrypted ESP packets.

Scenario 3: NAT Traversal (NAT-T) with ID Masquerading

Section titled “Scenario 3: NAT Traversal (NAT-T) with ID Masquerading”

1. Scenario Overview

Section titled “1. Scenario Overview”

In this scenario, the Branch Gateway is deployed behind a NAT device (e.g., an ISP optical modem) and does not have a public IP address.

Key Configuration Strategy (ID Masquerading):

  • Branch Side: The Branch Gateway “masquerades” its identity by claiming to be the NAT device’s Public IP (.166) during IKE negotiation.
  • HQ Side: The HQ Gateway is configured to peer with the NAT device’s Public IP (.166) directly.

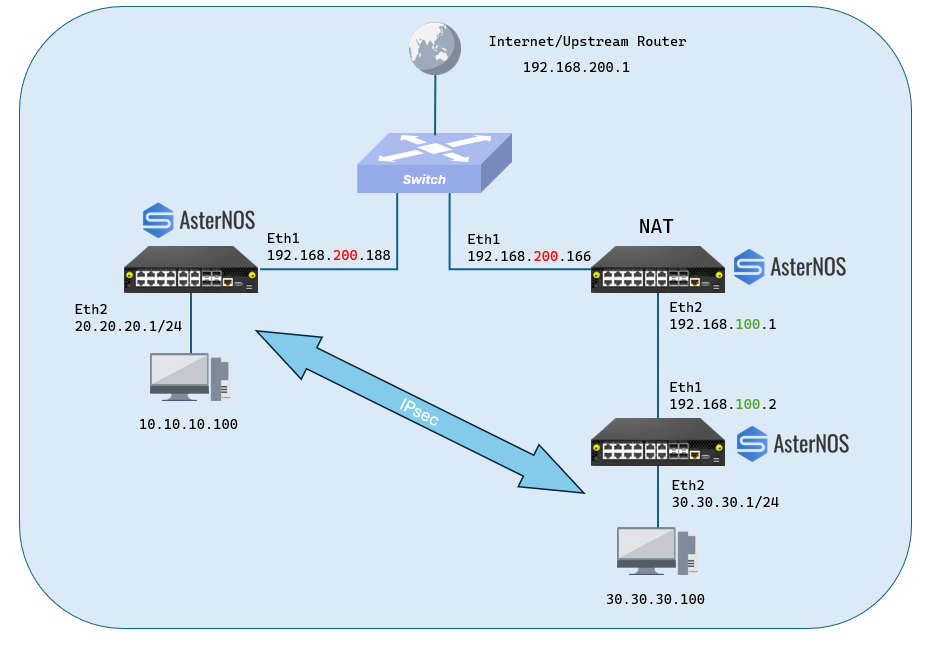

2. Network Topology Plan (Linear Chain)

Section titled “2. Network Topology Plan (Linear Chain)”

RoleDeviceInterfaceIP AddressFunctionSubnet Protected
HQ (Responder)AsterNOSEth1 (WAN)192.168.200.188Public VPN Gateway10.10.10.0/24
Eth2 (LAN)10.10.10.1Gateway for HQ PC
NAT RouterAsterNOSEth1 (WAN)192.168.200.166Simulates ISP RouterN/A
Eth2 (LAN)192.168.100.1Simulates LAN Gateway
Branch (Initiator)AsterNOSEth1 (WAN)192.168.100.2Private IP (Behind NAT)30.30.30.0/24
Eth2 (LAN)30.30.30.1Gateway for Branch PC

3. Configuration Steps

Section titled “3. Configuration Steps”

Step 1: Configure the Intermediate NAT Router (.166)

Section titled “Step 1: Configure the Intermediate NAT Router (.166)”

This device acts purely as a NAT router. It translates the Branch’s private IP (.100.x) to the Public WAN IP (.200.166).

Terminal window
1. Configure WAN Interface (Public)
sonic(config)# interface ethernet 1
sonic(config-if-1)# ip address 192.168.200.166/24
sonic(config-if-1)# nat-zone 1
sonic(config-if-1)# exit
 # 2. Configure LAN Interface (Private)
sonic(config)# interface ethernet 2
sonic(config-if-2)# ip address 192.168.100.1/24
sonic(config-if-2)# exit
 # 3. Configure SNAT Rule # Translates all traffic from 192.168.100.0/24 to Public IP 192.168.200.166
sonic(config)# nat pool pool1 192.168.200.166
sonic(config)# nat binding bind1 pool1
sonic(config)# nat enable
 # 4. Default Route
sonic(config)# ip route 0.0.0.0/0 192.168.200.1
sonic(config)# exit

Step 2: Configure HQ Gateway (.188)

Section titled “Step 2: Configure HQ Gateway (.188)”

The HQ gateway is on the public network. It is configured to peer directly with the NAT device’s Public IP.

Terminal window
sonic(config)# ipsec from_branch
sonic(config-ipsec)# shared_key_mic string test1234
sonic(config-ipsec)# ike crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96 dh modp-2048
  # Identity Configuration
Local: My Public IP (.188)
sonic(config-ipsec)# ike local type ip4 data 192.168.200.188
 # Remote: The NAT Device's PUBLIC IP (.166)
HQ expects the peer to identify as .166
sonic(config-ipsec)# ike remote type ip4 data 192.168.200.166
  # Traffic Selector (Local: 10.x <-> Remote: 30.x)
sonic(config-ipsec)# ike traffic_selector local ip4 addr_start 10.10.10.0 addr_end 10.10.10.255
sonic(config-ipsec)# ike traffic_selector remote ip4 addr_start 30.30.30.0 addr_end 30.30.30.255
  # SA Parameters
sonic(config-ipsec)# sa crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96
  # Tunnel Definition
dst_ip: Points to the physically reachable NAT Public IP (.166)
next_hop: Points to the next hop gateway (or directly to .166 if L2 connected)
sonic(config-ipsec)# sa tunnel ip4 src_ip 192.168.200.188 dst_ip 192.168.200.166 next_hop 192.168.200.166 remote_ip 30.30.30.0/24 shared_interface Ethernet1
sonic(config-ipsec)# exit

Step 3: Configure Branch Gateway (.100.2)

Section titled “Step 3: Configure Branch Gateway (.100.2)”

The Branch gateway is behind NAT. It must “masquerade” its Identity to match the HQ’s expectation.

Terminal window
sonic(config)# ipsec to_hq
sonic(config-ipsec)# shared_key_mic string test1234
sonic(config-ipsec)# ike crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96 dh modp-2048
  # Identity Configuration
Local: MASQUERADED ID -> We claim to be the Public NAT IP (.166)
sonic(config-ipsec)# ike local type ip4 data 192.168.200.166
 # Remote: HQ Public IP (.188)
sonic(config-ipsec)# ike remote type ip4 data 192.168.200.188
  # Traffic Selector (Local: 30.x <-> Remote: 10.x)
sonic(config-ipsec)# ike traffic_selector local ip4 addr_start 30.30.30.0 addr_end 30.30.30.255
sonic(config-ipsec)# ike traffic_selector remote ip4 addr_start 10.10.10.0 addr_end 10.10.10.255
  # SA Parameters
sonic(config-ipsec)# sa crypto_alg aes-cbc crypto_alg_size 256 integ_alg sha1-96
  # Tunnel Definition
src_ip: Must be the REAL Private IP (.100.2) to send packets
next_hop: Points to the internal NAT Gateway (.100.1)
sonic(config-ipsec)# sa tunnel ip4 src_ip 192.168.100.2 dst_ip 192.168.200.188 next_hop 192.168.100.1 remote_ip 10.10.10.0/24 shared_interface Ethernet1
sonic(config-ipsec)# exit
 # Bind to WAN Interface
sonic(config)# interface ethernet 1
sonic(config-if-1)# ipsec to_hq peer ip4 192.168.200.188
sonic(config-if-1)# exit

4. Verification

Section titled “4. Verification”

Data Plane Verification (NAT-T Encapsulation)

Section titled “Data Plane Verification (NAT-T Encapsulation)”

To confirm that NAT Traversal is functioning correctly, we perform a continuous ping from the Branch side (30.x) to the HQ side (10.x) and capture traffic at the NAT Device’s WAN Interface.

  1. Generate Traffic (Continuous Ping from Branch): From a PC or the Gateway on the Branch side (subnet 30.30.30.0/24), ping a target IP on the HQ side (subnet 10.10.10.0/24).
Terminal window
## From Branch PC (e.g., 30.30.30.100)
ping 10.10.10.100 -t

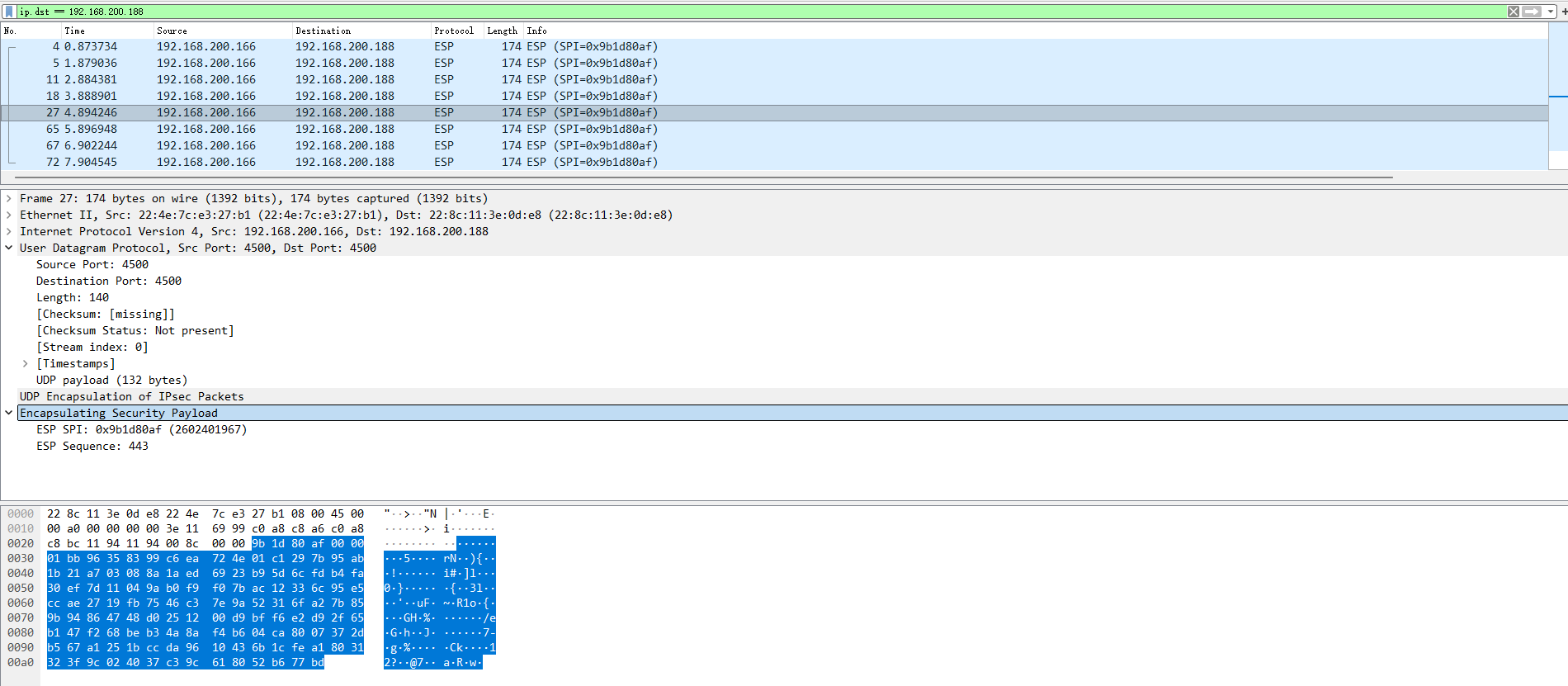

  1. Capture Packets (On NAT Device .166): Monitor traffic on the NAT Device’s WAN Interface (Ethernet 1).

Conclusion

Section titled “Conclusion”

This guide demonstrates that AsterNOS is a robust IPsec VPN solution capable of handling Site-to-Site, Hub-and-Spoke, and NAT-T scenarios. The validated configurations prove that the Asterfusion ET2500 ensures secure, encrypted connectivity across complex topologies. Specifically, the successful NAT Traversal implementation confirms the gateway’s ability to reliably connect branch offices located behind ISP NAT devices.
