ARP/ND Configuration Guide

Introduction

ARP (Address Resolution Protocol) is a protocol for obtaining MAC addresses based on IP addresses. Main frame sends messages broadcasting an ARP request containing the target IP address to all hosts on the local area network and receives return messages, which determines the physical address of the target; upon receipt of the return packets, the IP address and physical address are stored in the local ARP cache and retained for a certain period of time, and the ARP cache is queried directly on the next request to save resources.

Basic Concepts

Dynamic ARP

Dynamic ARP table entries are automatically generated and maintained by the ARP protocol through ARP packets, and can be aged and updated, and can be overwritten by static ARP table entries. When the aging time is reached or the interface is down, the corresponding dynamic ARP table entry will be deleted.

Static ARP

Static ARP table entries are configured and maintained manually and will not be aged out and overwritten by dynamic ARP table entries. Configuring static ARP table entries can increase the security of communication. When the network resources of the group network are more abundant, you can choose to deploy static ARP and fix the mapping relationship between IP addresses and MAC addresses.

ARP Proxy

If the hosts belong to the same subnet but are not on the same physical network, and the gateway devices connected to the hosts have different gateway addresses, then for the hosts to communicate with each other, ARP proxy must be enabled on the switch interfaces connected to the hosts. When the switch has ARP proxy enabled, it responds to ARP requests for IP addresses within the same subnet using its own MAC address.

ARP Configuration

ARP default setting

The default setting of ARP is shown in the table below.

Table 1 ARP default setting

Parameters	Default value
Aging time of dynamic ARP table entries	300 seconds
ARP Proxy	Not Enabled
ARP probe interval	6 seconds
ARP probe times	5 times

Configure static ARP

Configure the static ARP table entry protects the ARP table from being overwritten, but the configuration effort is high and it is not suitable for network environments where the host IP address may change, recommended for smaller networks.

Table 2 Configure static ARP

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Configure a static ARP entry.	arp static A.B.C.D HH:HH:HH:HH:HH:HH interface {ethernet|vlan|link-aggregation} interface-name[.subinterface-number]	-

Configure global ARP timeout

Table 3 Configure global ARP timeout

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Configure ARP timeout.	arp timeout aging-time	interval-time , range [1-65535], in units of seconds.

Configure ARP timeout for interface

Table 4 Configure ARP timeout for interface

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Enter interface configuration view.	interface {ethernet interface-name[.subinterface-number] |link-aggregation lag-id[.subinterface-number]|vlan vlan-id}	-
Configure ARP timeout.	arp timeout aging-time	interval-time , range [1-65535], in units of seconds.

Configure ARP probe parameters

Table 5 Configure global ARP probe parameters

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Configure the probe interval.	arp probe interval interval-time	interval-time , range [1-65535], in units of seconds.
Configure the probe times.	arp probe times num	num range [1-65535], in units of seconds

Configure ARP probe parameters for interface

Table 6 Configure ARP probe parameters for interface

Purpose	Commands	Description
Enter global configuration view	configure terminal	-
Enter interface configuration view.	interface {ethernet interface-name[.subinterface-number] |link-aggregation lag-id[.subinterface-number]|vlan vlan-id}	-
Configure the probe interval	arp probe interval interval-time	interval-time , range [1-65535], in units of seconds.
Configure the probe times	arp probe times num	num range [1-65535], in units of seconds

Configure ARP to host route

Enabling ARP to HOST route translation converts ARP table entries learned by the TOR device into host routes that can be propagated to other devices via BGP. Users can configure ARP to HOST route translation policies. This series provides two levels of conversion policies.

• Level 1: Port Policy

The action of port policy is available as permit/deny/pass. It is required to configure the default policy for all ports first, and then the special policy. If the incoming port matches the configured interface, the special policy is used; if it does not match, the default policy is used. If the policy is permit or deny, the conversion will be performed directly or not, without matching the next level Network policy; if the policy is pass, the next level Network policy will decide whether to convert or not.

• Level 2: Network Policy

The action of network policy is available as permit/deny. It is required to configure the default policy for network first, and then the special policy. If the neighbor IP matches the configured network, then the special policy is used; if not, then the default policy is used.

Table 7 Configure ARP to HOST Route

Purpose	Commands	Description
Enter global configuration view	configure terminal	-
Enter ARP to HOST configuration view	arp-to-host	-
Enable ARP to HOST	convert enable [vrf vrf-name]	By default, the VRF parameter enables the default VRF
Configure the ARP to HOST port route policy	policy port {ethernet|link-aggregation} interface-name {permit|deny|pass}	Port policy applied to global configuration
Configure the ARP to HOST default route policy or networtk route policy	policy [vrf vrf-name] {port default {permit|deny|pass}|network default {permit|deny}|network A.B.C.D/M {permit|deny}}	vrfname VRF name, default is the default VRF.A.B.C.D/M is an IPv4 address with prefix length.

Configure ARP proxy

ARP proxy has two modes:

• Default mode: In this mode, when the switch receives an ARP request from the same network segment, it replies with the gateway’s MAC address.
• EVPN mode: This mode is used in EVPN scenarios to facilitate Layer 3 communication between hosts under different VTEPs. When ARP proxy is enabled on the gateway VLAN, the switch replies to ARP requests from the same network segment with the actual MAC address of the host.

Table 8 Configure ARP proxy

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Enter interface configuration view.	interface {ethernet interface-name[.subinterface-number] |link-aggregation lag-id[.subinterface-number]|vlan vlan-id}	-
Enable ARP Proxy.	arp proxy [mode default]	-

Configure extend ARP proxy

There are two extended features for ARP proxy:

• ARP Active Detection Feature This feature is enabled in Layer 2 networks where silent terminals (terminals that do not actively send ARP packets) are present. When this feature is activated, if the switch receives an ARP request and the target IP in the packet belongs to the same network segment, the switch will actively send an ARP request to probe.
• ARP Reply Packet Learning Feature By default, the switch only learns the source IP from ARP request packets. When this feature is enabled, upon receiving an ARP reply packet, the switch will add the source IP to the dynamic ARP table.

Table 9 Configure extend ARP proxy

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Enter interface configuration view.	interface {ethernet interface-name[.subinterface-number] |link-aggregation lag-id[.subinterface-number]|vlan vlan-id}	-
Enable silent terminal active detection.	arp proxy extend request	-
Enable learning of ARP Reply packets.	arp proxy extend reply	-

Disable ARP flooding

Disabling ARP flooding is applicable in scenarios that demand high performance, low latency, or enhanced security. For instance, in large-scale virtualized environments, the frequent migration of virtual machines can result in a surge of ARP requests across the network. Without proper control, ARP flooding can trigger broadcast storms, thereby increasing network load and degrading performance. Moreover, in VXLAN Overlay networks, ARP flooding can cause unnecessary traffic spread, impacting bandwidth efficiency. By activating the ARP proxy feature and disabling ARP flooding, switches can directly handle ARP requests, which significantly reduces broadcast traffic. Furthermore, disabling ARP flooding helps in mitigating ARP spoofing attacks, thus bolstering network security.

Table 10 Disable ARP flooding

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Disable ARP flooding.	arp broadcast disable	This command takes effect globally.

Display and Maintenance

Table 11 ARP Display and Maintenance

Purpose	Commands	Description
Display ARP entries.	show arp	-
Display ARP to host summary configuration.	show arp-to-host summary	summary: show ARP to HOST basic informationpolicy: show ARP to HOST rule information
Display ARP to host detailed configuration.	show arp-to-host policy	-
Clear all dynamic ARP entries.	clear neighbor all	-
Clear the dynamic ARP entries of the interface.	clear neighbor interface {ethernet|link-aggregation|vlan} {interface_name[.subinterface-number]}	-

Typical Configuration Example

Configure ARP Proxy

1. Networking Requirements Two users on the same subnet are isolated into two different physical networks by different physical routers. Now, it is necessary for these users in the same subnet, but in different physical networks, to communicate with each other.

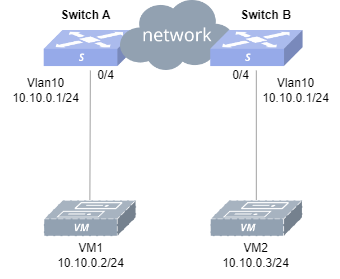

2. Topology

3. Procedure

In this example, to simplify the networking, Layer 3 reachability between hosts is achieved by deploying a directly connected link (ethernet 0/0) and static routes on Device A and B.

#Configure an interconnect link and a static route between Device A and B.

sonic(config)# interface ethernet 0/0
sonic(config-if-0/0)# ip address 11.0.0.1/24
sonic(config-if-0/0)# exit
sonic(config)# ip route 10.10.0.3/32 11.0.0.2

#Configure a VLAN and IP.

sonic(config)# vlan 10
sonic(config-vlan-10)# exit
sonic(config)# interface vlan 10
sonic(config-vlanif-10)# ip address 10.10.0.1/24
sonic(config)# interface ethernet 0/4
sonic(config-if-0/4)# switchport access vlan 10

#Enable ARP proxy.

sonic(config-vlanif-10)# interface vlan 10
sonic(config-vlanif-10)# arp proxy mode default

Device B

#Configure an interconnect link and a static route between Device A and B.

sonic(config)# interface ethernet 0/0
sonic(config-if-0/0)# ip address 11.0.0.2/24
sonic(config-if-0/0)# exit
sonic(config)# ip route 10.10.0.2/32 11.0.0.1

#Configure a VLAN and IP.

sonic(config)# vlan 10
sonic(config-vlan-10)# exit
sonic(config)# interface vlan 10
sonic(config-vlanif-10)# ip address 10.10.0.1/24
sonic(config)# interface ethernet 0/4
sonic(config-if-0/4)# switchport access vlan 10

#Enable ARP proxy.

sonic(config-vlanif-10)# interface vlan 10
sonic(config-vlanif-10)# arp proxy mode default

Hosts

#Configure VM1’s IP address as 10.10.0.2/24 and VM2’s IP as 10.10.0.3/24.

4. Verification Let VM1 send NS messages to VM2 and check the ARP neighbor table on VM1. It is shown that the VM2 MAC is the MAC of VLAN 10. VM1 and VM2 can ping each other.

ND

Introduction

The ND (Neighbor Discovery) protocol is a key protocol for IPv6, which combines protocols such as ARP, ICMP route discovery, and ICMP redirection from IPv4 and improves them. As a foundational protocol for IPv6, the ND protocol also provides prefix discovery, neighbor unreachability detection, duplicate address detection, and Stateless Address Autoconfiguration(SLAAC).

Basic Concepts

Dynamic ND

Dynamic ND table entries are automatically generated and maintained by the ND protocol through ND packets, and can be aged and updated, and can be overwritten by static ND table entries. When the aging time is reached or the interface is down, the corresponding dynamic ND table entry will be deleted.

Static ND

Static ND table entries are configured and maintained manually and will not be aged out and overwritten by dynamic ND table entries. Configuring static ND table entries can increase the security of communication. When the network resources of the group network are more abundant, you can choose to deploy static ND and fix the mapping relationship between IP addresses and MAC addresses.

ND Proxy

If hosts belong to the same network segment but on different physical networks, or hosts belong to the same network segment in the same physical network but cannot communicate with each other at Layer 2, you can enable ND proxy on the connected interface of the switch to achieve intercommunication between hosts. When the switch enables the ND proxy, it will use its own MAC as the source MAC and the destination host’s IPv6 address as the source IP to reply to the source host with the NA message, replacing the destination host to reply to the same network segment NS request.

SLAAC

SLAAC is a stateless auto-address configuration mechanism in IPv6 that uses RS (Router Solicitation) messages and RA (Router Advertisement) messages to complete the stateless auto-configuration process between IPv6 routers and IPv6 hosts. The host discovers the IPv6 router on the link through RS messages, and the IPv6 router advertises the IPv6 address prefix information to the host through RA messages, and the host automatically configures the IPv6 global unicast address after receiving the IPv6 prefix information. RADV (Router Advertisement Message) is a message broadcast by the IPv6 router to the switches in the local network, which is the core component of the SLAAC mechanism. Users can manually configure whether the interface sends RA messages and the time interval for sending RA messages, as well as configure the relevant parameters in the RA messages to be advertised to other devices.

ND Configuration

ND Default Setting

The default setting of ND is shown in the table below.

Table 12 ND Default Setting

Parameters	Default value
Aging time of dynamic ND table entries	300 seconds
ND Proxy	Not Enabled
ND probe interval	6 seconds
ND probe times	5 times
RA notification	disable
MTU of the link for RA notification	9216
RA managed-flag	off
RA other-config-flag	off
RA on-link-flag	on
RA autonomous-flag	on
Maximum time interval for RA notifications	600s
Minimum time interval for RA notifications	200s

Configure static ND

Configure the static ND table entry protects the ND table from being overwritten, but the configuration effort is high and it is not suitable for network environments where the host IP address may change, recommended for smaller networks.

Table 13 Configure Static ND

Purpose	Commands	Description
Enter global configuration view	configure terminal	-
Configure a static ND entry	ndp static X:X::X:X*/M HH:HH:HH:HH:HH*:HH interface {ethernet interface-name[.subinterface-number]|link-aggregation lag-id[.subinterface-number]|vlan vlan-id}	-

Configure ND to host route

Enabling ND to host route translation converts ND table entries learned by the TOR device into host routes that can be propagated to other devices via BGP. Users can configure ND to host route translation policies. This series provides two levels of conversion policies.

• Level 1: Port Policy

The action of port policy is available as permit/deny/pass. It is required to configure the default policy for all ports first, and then the special policy. If the incoming port matches the configured interface, the special policy is used; if it does not match, the default policy is used. If the policy is permit or deny, the conversion will be performed directly or not, without matching the next level Network policy; if the policy is pass, the next level Network policy will decide whether to convert or not.

• Level 2: Network Policy

The action of network policy is available as permit/deny. It is required to configure the default policy for network first, and then the special policy. If the neighbor IP matches the configured network, then the special policy is used; if not, then the default policy is used.

Table 14 Configure ND to HOST Route

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Enter ND to host configuration view.	arp-to-host	-
Enable ND to host.	convert enable [vrf vrf-name]	Applied to the default VRF when not specified.
Set default port policy.	policy [vrf vrf-name] port default {permit|deny|pass}	-
(Optional) Set policy for specific port.	policy [vrf vrf-name] port {ethernet|link-aggregation} interface-num {permit|deny|pass}	-
(Optional) Set default network policy.	policy [vrf vrf-name] network default {permit|deny}	-
(Optional) Set policy for specific network.	policy [vrf vrf-name] network X:X::X:X/M {permit|deny}	-

Note

There is no separate command set for ND to host functionality, which is shared with the ARP to host series commands.

Configure ND Proxy

Table 15 Configure ND Proxy

Purpose	Commands	Description
Enter global configuration view.	configure terminal	-
Enter interface configuration view.	interface {ethernet interface-name[.subinterface-number]|link-aggregation lag-id[.subinterface-number]|vlan vlan-id}	-
Enable ND Proxy.	nd proxy mode default	-

Configure IPv6 Neighbor Discovery

Table 16 Configure IPv6 Neighbor Discovery

Purpose	Commands	Description
Enter global configuration view	configure terminal	-
Enable RA notification.	radv enable	-
Enter interface configuration view	interface {ethernet interface-name[.subinterface-number] |link-aggregation lag-id[.subinterface-number]|vlan vlan-id}	-
Configure prefix information for RA notification.	radv prefix X:X::X:X/M	-
(Optional) Configure DNS information for RA notification.	radv dns-server X:X::X:X	-
(Optional) Configure the MTU of the link for RA notification.	radv link-mtu mtu	Ensure that all nodes on the same link use the same MTU value
(Optional) Configure route information for RA notification.	radv route-information X:X::X:X/M [preference {low|high|medium}]	-
(Optional) Set the managed-flag to on.	radv managed-flag	This configuration is used to determine whether hosts uses stateful protocol for IPv6 address autoconfiguration, and the default is off.
(Optional) Set the other-config-flag to on.	radv other-config-flag	This configuration is used to determine whether hosts uses stateful protocol for autoconfiguration of other (non-address) information, and the default is off.
(Optional) Set the flag of on-link to off.	radv offlink	-
(Optional) Set the flag of autonomous to off.	radv no-autonomous	-
(Optional) Set the maximum and minimum time interval between two RA notifications.	radv ra-interval MaxRtrAdvInterval MinRtrAdvInterval	Set the maximum time interval for RA notifications in seconds, the default value is 600.Set the minimum time interval for RA notifications in seconds, the default value is 600.
Commit the configuration to take effect.	radv commit	-

Disable ND broadcast

Display and Maintenance

Table 17 Display and Maintenance

Purpose	Commands	Description
Display IPv6 neighbors.	show ndp [interface] {ethernet interface-name[.subinterface-number]|link-aggregation lag-id[.subinterface-number]|vlan vlan-id} [X:X::X:X/M]	-
Display ND to host configuration.	show arp-to-host summary	-
Display ND to host detailed configuration.	show arp-to-host policy	-
Show RADV configuration.	show radv	-

Typical Configuration Example

1. Networking Requirements Two users on the same subnet are isolated into two different physical networks by different physical routers. Now, it is necessary for these users in the same subnet, but in different physical networks, to communicate with each other.

Configure ND Proxy

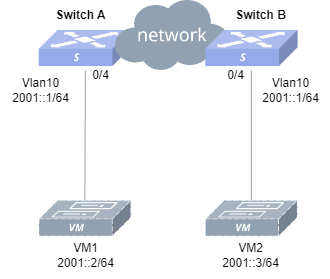

1. Topology

3. Procedure

In this example, to simplify the networking, Layer 3 reachability between hosts is achieved by deploying a directly connected link (ethernet 0/0) and static routes on Device A and B.

Device A

#Configure an interconnect link and a static route between Device A and B.

sonic(config)# interface ethernet 0/0
sonic(config-if-0/0)# ip address 2000::1/64
sonic(config-if-0/0)# exit
sonic(config)# ipv6 route 2001::3/128 2000::2

#Configure a VLAN and IP.

sonic(config)# vlan 10
sonic(config-vlan-10)# exit
sonic(config)# interface vlan 10
sonic(config-vlanif-10)# ip address 2001::1/64
sonic(config)# interface ethernet 0/4
sonic(config-if-0/4)# switchport access vlan 10

#Enable ND proxy.

sonic(config-vlanif-10)# interface vlan 10
sonic(config-vlanif-10)# nd proxy mode default

Device B #Configure an interconnect link and a static route between Device A and B.

sonic(config)# interface ethernet 0/0
sonic(config-if-0/0)# ip address 2000::2/64
sonic(config-if-0/0)# exit
sonic(config)# ipv6 route 2001::2/128 2000::1

#Configure a VLAN and IP.

sonic(config)# vlan 10
sonic(config-vlan-10)# exit
sonic(config)# interface vlan 10
sonic(config-vlanif-10)# ip address 2001::1/64
sonic(config)# interface ethernet 0/4
sonic(config-if-0/4)# switchport access vlan 10

#Enable ND proxy.

sonic(config-vlanif-10)# interface vlan 10
sonic(config-vlanif-10)# nd proxy mode default

Hosts

#Configure VM1’s IPv6 address as 2001::2/64 and VM2’s IPv6 address as 2001::3/64.

4. Verification

Let VM1 send NS messages to VM2 and check the IPv6 neighbor table on VM1. It is shown that the VM2 MAC is the MAC of VLAN 10. VM1 and VM2 can ping each other.
