NAT-VRRP HA Case

Introduction

Section titled “Introduction”

This guide configures and verifies two independent AsterNOS-VPP high-availability deployment models:

  • Scenario 1: Dual-WAN dynamic NAT with SLA-based route switching, Monitor Link, and LAN-side VRRP. This scenario validates recovery of new outbound traffic after WAN or router failover.
  • Scenario 2: Stateful NAT high availability with WAN/LAN VRRP Sync Group, PBR, TCP Stateful Packet Inspection, and HA synchronization. This scenario validates the continuity of established inbound and outbound SSH sessions during router failover.

Use Scenario 1 when recovery of new traffic is sufficient. Use Scenario 2 when established stateful sessions must continue without user reconnection.

The examples use documentation address ranges. Replace all IP addresses, interface numbers, next hops, credentials, and other deployment-specific parameters with values appropriate for the target network.

Configuration Reference

Section titled “Configuration Reference”

The following tables summarize the AsterNOS-VPP commands used in this guide.

Interface Configuration

Section titled “Interface Configuration”
CommandPurpose
interface ethernet <id>Enter interface configuration mode
ip address <ip>/<mask>Configure an IPv4 address
shutdown / no shutdownAdministratively disable or enable an interface

VRRP Configuration

Section titled “VRRP Configuration”
CommandPurpose
vrrp <vrid>Create a VRRP instance
vrrp <vrid> priority <value>Configure VRRP priority
vrrp <vrid> preemptEnable VRRP preemption
vrrp <vrid> ip <virtual-ip>/<mask>Configure VRRP virtual IP address
vrrp <vrid> sync-group <group-id>Add a VRRP instance to a Sync Group
vrrp <vrid> sync-group <group-id> priority-dec <value>Configure priority reduction when Sync Group member failure occurs

NAT Configuration

Section titled “NAT Configuration”
CommandPurpose
nat enableEnable NAT functionality
nat-zone <zone-id>Assign an interface to a NAT zone
nat pool <pool-name> <pool-address>Create a NAT address pool
nat binding <binding-name> <pool-name>Bind traffic to a NAT pool
nat static tcp <public-ip> <public-port> <private-ip> <private-port> dnat extendable <rule-name>Configure static TCP destination NAT

Routing and Traffic Steering

Section titled “Routing and Traffic Steering”
CommandPurpose
ip route <prefix> <next-hop>Configure a static route
sla <id> icmp-echo dst-ip <address> src-ip <address>Configure an ICMP-based SLA probe
track <id>Create and enter a tracking object
route <prefix> <next-hop> [dev <interface>]Configure the tracked route in Track configuration mode
sla <id>Associate an SLA probe with the tracking object
pbr-map <name> seq <number>Create a policy-based routing rule
pbr-policy <name>Apply a PBR policy to an interface
Section titled “Monitor Link Configuration”
CommandPurpose
monitor-link-group <name> <id>Create a Monitor Link group
monitor-link <group-name> uplinkConfigure an interface as an uplink member
monitor-link <group-name> downlinkConfigure an interface as a downlink member

HA Synchronization Configuration

Section titled “HA Synchronization Configuration”
CommandPurpose
ha_sync enableEnable HA synchronization
ha_sync globalEnter global HA synchronization configuration mode
domain_id <id>Configure HA synchronization domain
peer_address <address>Configure peer synchronization address
src_address <address>Configure local synchronization address
src_intfc <interface>Configure the synchronization source interface

Stateful Packet Inspection Configuration

Section titled “Stateful Packet Inspection Configuration”
CommandPurpose
stateful-packet-inspection enable tcpEnable TCP Stateful Packet Inspection

Scenario 1: Dual-WAN Dynamic NAT Gateway with LAN-Side VRRP

Section titled “Scenario 1: Dual-WAN Dynamic NAT Gateway with LAN-Side VRRP”

Scenario Overview

Section titled “Scenario Overview”

Scenario 1 configures two AsterNOS-VPP routers as a dual-WAN dynamic NAT gateway with a shared LAN-side VRRP virtual address.

SLA and Track switch new traffic from ISP-A to ISP-B while the active router remains the VRRP Master. If both WAN uplinks on the active router fail, Monitor Link affects the LAN downlink and allows the standby router to take over the VRRP virtual gateway. Because the routers use different physical WAN addresses and do not synchronize session state, the validation focuses on recovery of new traffic flows.

Preparation and Environmental Overview

Section titled “Preparation and Environmental Overview”

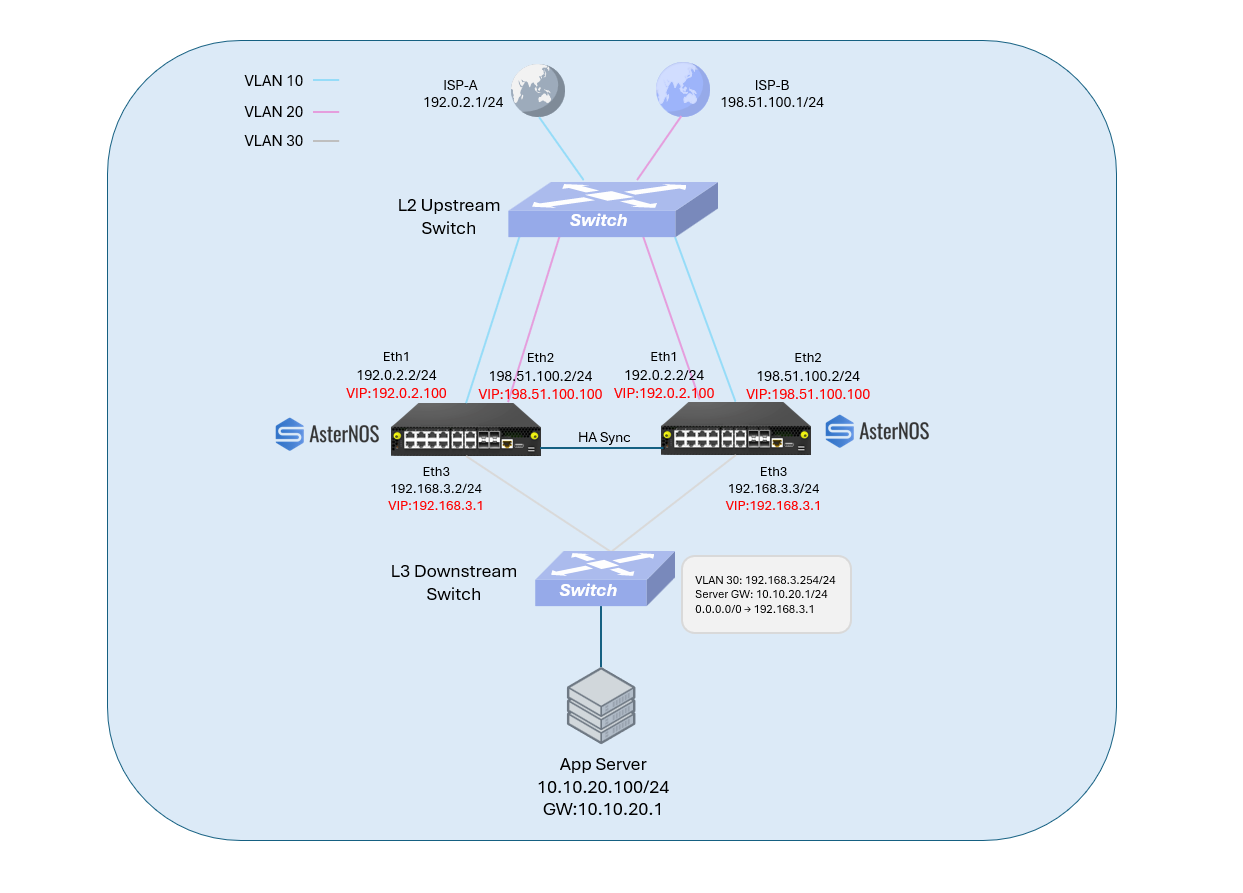

Network Topology Plan

Section titled “Network Topology Plan”

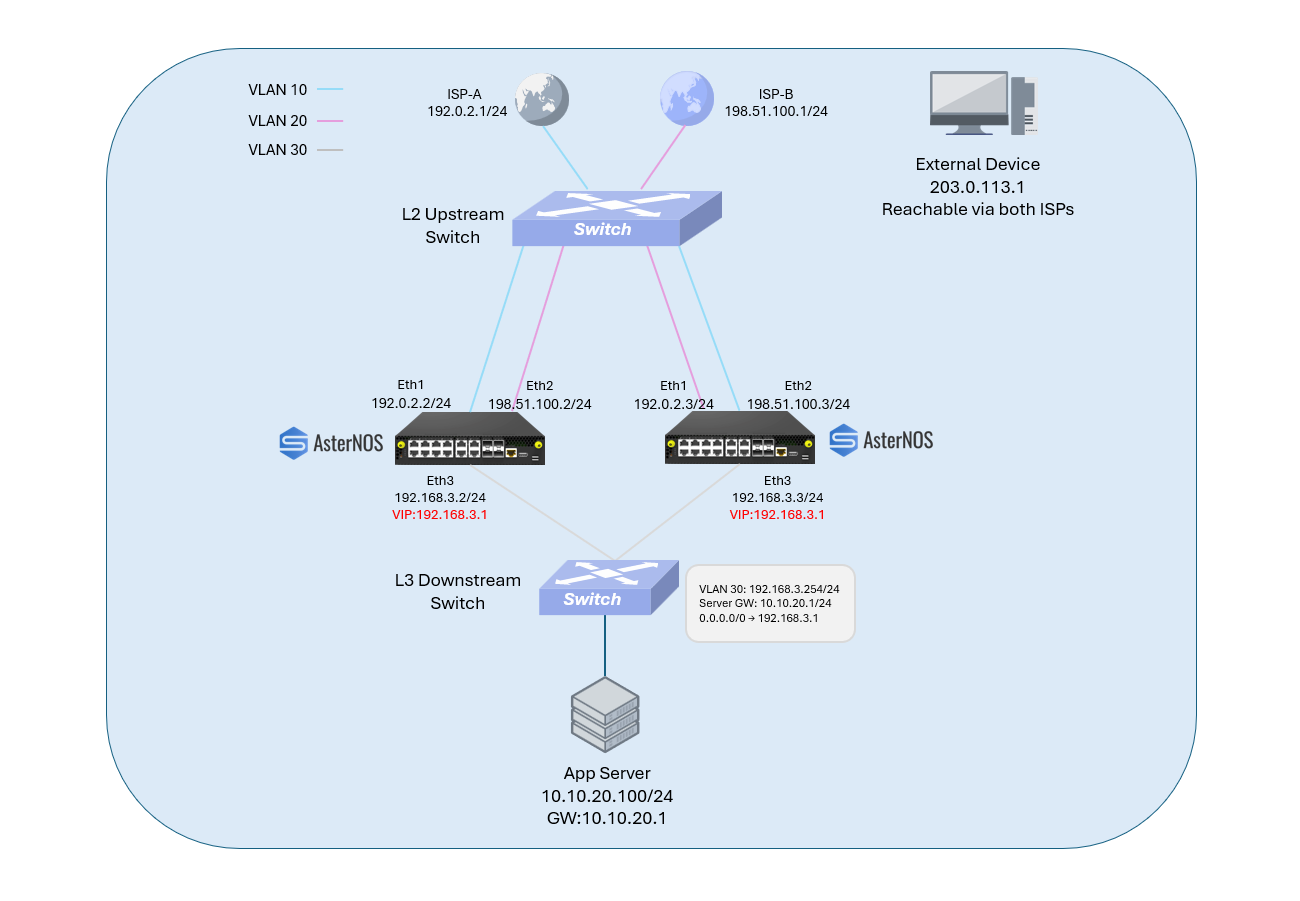

The upstream network provides two isolated Layer 2 domains, one for each ISP. Both routers connect to both ISP domains. The downstream device connects the two router LAN interfaces to the application-server network.

Target Configuration Plan

Section titled “Target Configuration Plan”

Router Interface Plan

Section titled “Router Interface Plan”
RouterISP-A / Ethernet1ISP-B / Ethernet2LAN / Ethernet3Initial VRRP Role
Router-A192.0.2.2/24198.51.100.2/24192.168.3.2/24Master candidate, priority 200
Router-B192.0.2.3/24198.51.100.3/24192.168.3.3/24Backup candidate, priority 190

Shared Network Plan

Section titled “Shared Network Plan”
Network FunctionAddressingPurpose
ISP-A gateway192.0.2.1/24Preferred upstream next hop and SLA target
ISP-B gateway198.51.100.1/24Backup upstream next hop
LAN VRRP VIP192.168.3.1/24Stable virtual next hop for the downstream network
Downstream transit192.168.3.254/24Router-facing Layer 3 address
Application network10.10.20.0/24Internal server subnet; gateway 10.10.20.1
App-Server10.10.20.100/24Internal traffic source
External test address203.0.113.1/32Destination reachable through either ISP

Infrastructure Prerequisites

Section titled “Infrastructure Prerequisites”

Before configuring the routers, ensure that the surrounding network is prepared as follows:

  • Router-A Ethernet1 and Router-B Ethernet1 are in the ISP-A Layer 2 domain.
  • Router-A Ethernet2 and Router-B Ethernet2 are in the ISP-B Layer 2 domain.
  • Router-A Ethernet3 and Router-B Ethernet3 are in the same LAN Layer 2 domain.
  • The downstream device routes 10.10.20.0/24 toward the application server and uses 192.168.3.1 as its default route.
  • The external test address 203.0.113.1/32 is reachable through both ISP networks.
  • The App-Server uses 10.10.20.1 as its default gateway.

This guide includes only the Router-A and Router-B configuration commands. The upstream, downstream, and test hosts are treated as preconfigured infrastructure.

Configure Router-A

Section titled “Configure Router-A”
sonic# configure


# Set the device hostname
sonic(config)# hostname Router-A


# Create the Monitor Link group
sonic(config)# monitor-link-group ml1 0


# Configure ISP-A as the preferred WAN
sonic(config)# interface ethernet 1
sonic(config-if-1)# ip address 192.0.2.2/24
sonic(config-if-1)# monitor-link ml1 uplink
sonic(config-if-1)# nat-zone 1
sonic(config-if-1)# exit


# Configure ISP-B as the backup WAN
sonic(config)# interface ethernet 2
sonic(config-if-2)# ip address 198.51.100.2/24
sonic(config-if-2)# monitor-link ml1 uplink
sonic(config-if-2)# nat-zone 1
sonic(config-if-2)# exit


# Configure the LAN interface and VRRP
sonic(config)# interface ethernet 3
sonic(config-if-3)# ip address 192.168.3.2/24
sonic(config-if-3)# monitor-link ml1 downlink
sonic(config-if-3)# vrrp 1
sonic(config-if-3)# vrrp 1 priority 200
sonic(config-if-3)# vrrp 1 ip 192.168.3.1/24
sonic(config-if-3)# exit


# Enable dynamic NAT and create one pool for each WAN
sonic(config)# nat enable
sonic(config)# nat pool ispa-pool 192.0.2.2
sonic(config)# nat pool ispb-pool 198.51.100.2
sonic(config)# nat binding ispa-binding ispa-pool
sonic(config)# nat binding ispb-binding ispb-pool


# Probe the preferred ISP gateway
sonic(config)# sla 1 icmp-echo dst-ip 192.0.2.1 src-ip 192.0.2.2


# Install the preferred default route only while SLA 1 is healthy
sonic(config)# track 1
sonic(config-track-1)# route 0.0.0.0/0 192.0.2.1 dev Ethernet1
sonic(config-track-1)# sla 1
sonic(config-track-1)# exit


# Install ISP-B as the backup default route
sonic(config)# ip route 0.0.0.0/0 198.51.100.1 20


# Add the return route to the application-server network
sonic(config)# ip route 10.10.20.0/24 192.168.3.254


# Save the configuration
sonic(config)# end
sonic# write

Failover roles:
SLA and Track control WAN route selection within the active router. Monitor Link triggers LAN-side VRRP failover only when all configured WAN uplinks are unavailable.

Configure Router-B

Section titled “Configure Router-B”
sonic# configure


# Set the device hostname
sonic(config)# hostname Router-B


# Create the Monitor Link group
sonic(config)# monitor-link-group ml1 0


# Configure ISP-A as the preferred WAN
sonic(config)# interface ethernet 1
sonic(config-if-1)# ip address 192.0.2.3/24
sonic(config-if-1)# monitor-link ml1 uplink
sonic(config-if-1)# nat-zone 1
sonic(config-if-1)# exit


# Configure ISP-B as the backup WAN
sonic(config)# interface ethernet 2
sonic(config-if-2)# ip address 198.51.100.3/24
sonic(config-if-2)# monitor-link ml1 uplink
sonic(config-if-2)# nat-zone 1
sonic(config-if-2)# exit


# Configure the LAN interface and VRRP
sonic(config)# interface ethernet 3
sonic(config-if-3)# ip address 192.168.3.3/24
sonic(config-if-3)# monitor-link ml1 downlink
sonic(config-if-3)# vrrp 1
sonic(config-if-3)# vrrp 1 priority 190
sonic(config-if-3)# vrrp 1 ip 192.168.3.1/24
sonic(config-if-3)# exit


# Enable dynamic NAT and create one pool for each WAN
sonic(config)# nat enable
sonic(config)# nat pool ispa-pool 192.0.2.3
sonic(config)# nat pool ispb-pool 198.51.100.3
sonic(config)# nat binding ispa-binding ispa-pool
sonic(config)# nat binding ispb-binding ispb-pool


# Probe the preferred ISP gateway
sonic(config)# sla 1 icmp-echo dst-ip 192.0.2.1 src-ip 192.0.2.3


# Install the preferred default route only while SLA 1 is healthy
sonic(config)# track 1
sonic(config-track-1)# route 0.0.0.0/0 192.0.2.1 dev Ethernet1
sonic(config-track-1)# sla 1
sonic(config-track-1)# exit


# Install ISP-B as the backup default route
sonic(config)# ip route 0.0.0.0/0 198.51.100.1 20


# Add the return route to the application-server network
sonic(config)# ip route 10.10.20.0/24 192.168.3.254


# Save the configuration
sonic(config)# end
sonic# write

Verification

Section titled “Verification”

Verification 1: Normal Dynamic NAT Through ISP-A

Section titled “Verification 1: Normal Dynamic NAT Through ISP-A”

Check the VRRP and Routing State

Section titled “Check the VRRP and Routing State”

Run the following commands:

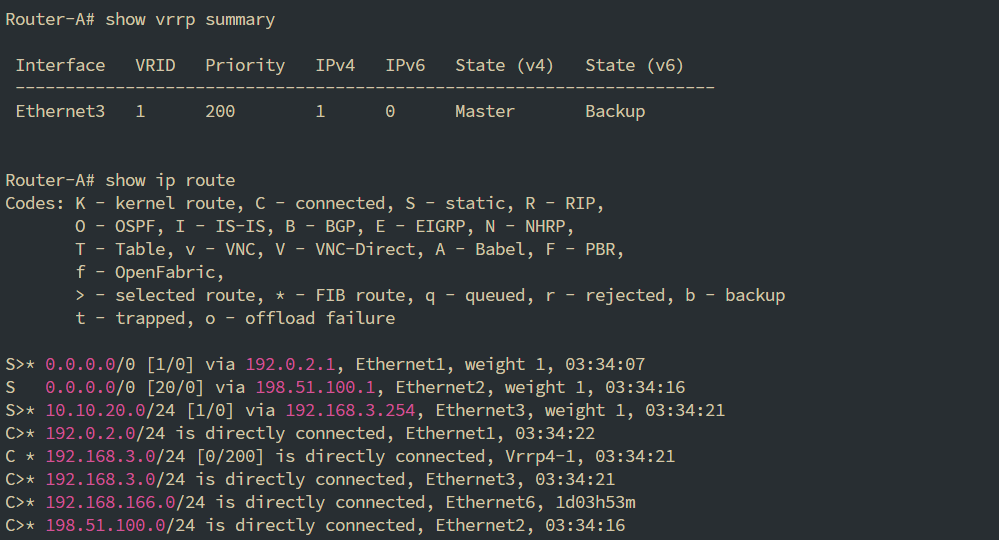

# Check Router-A
sonic# show vrrp summary
sonic# show ip route


# Check Router-B

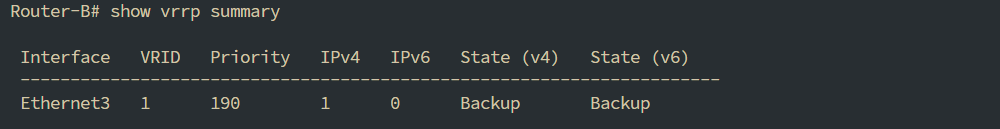

sonic# show vrrp summary

Generate and Verify Outbound Traffic

Section titled “Generate and Verify Outbound Traffic”

From App-Server, generate traffic toward the external test address:

Terminal window
app-server$ ping -c 5 203.0.113.1

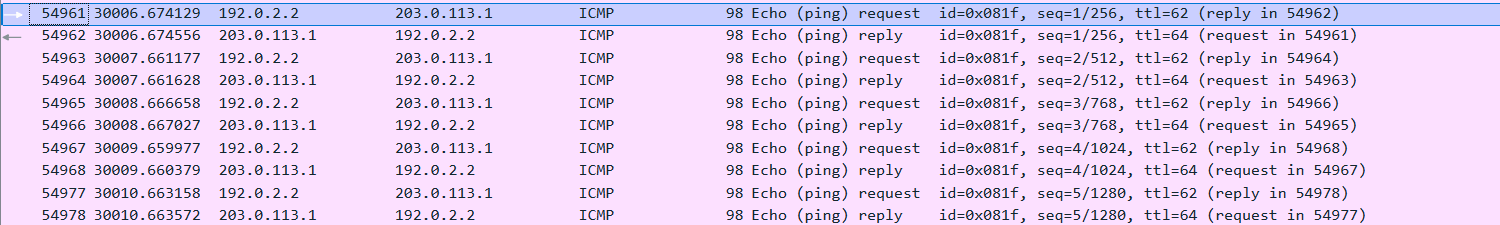

Expected translated packets on the ISP-A path:

192.0.2.2   -> 203.0.113.1   ICMP Echo request
203.0.113.1 -> 192.0.2.2     ICMP Echo reply

The source address 192.0.2.2 confirms that Router-A performs dynamic source NAT through ISP-A.

Verification 2: Single-WAN Failover Within Router-A

Section titled “Verification 2: Single-WAN Failover Within Router-A”

Trigger the Failure

Section titled “Trigger the Failure”

Disconnect Router-A Ethernet1 from the ISP-A network while keeping Router-A Ethernet2 and Ethernet3 available. Wait for the SLA and route tracking state to converge.

Check the Control-Plane Result

Section titled “Check the Control-Plane Result”

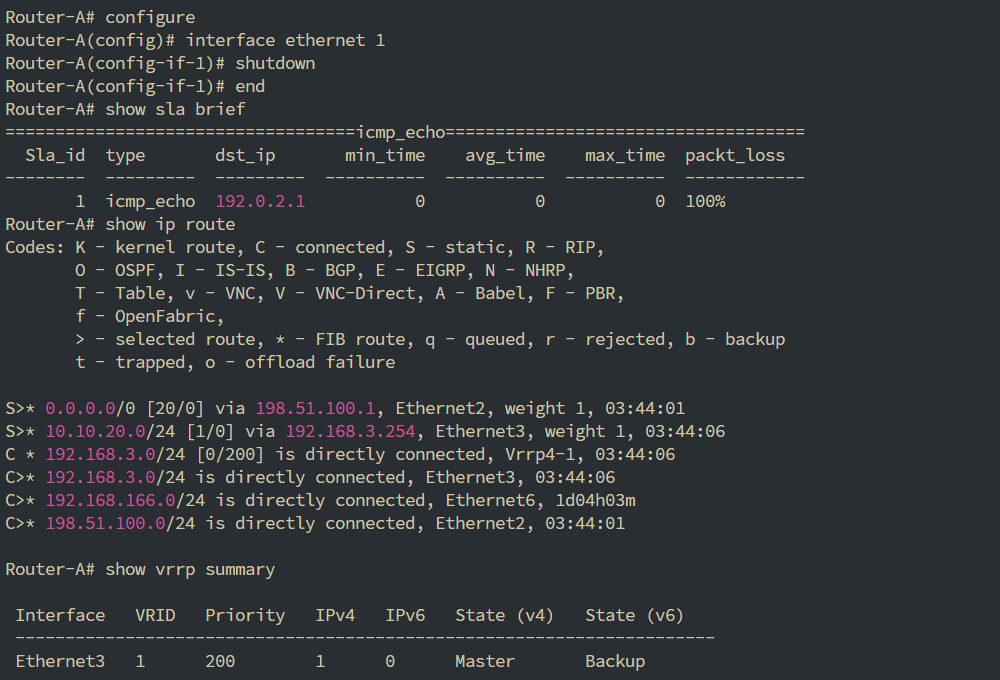

Run on Router-A:

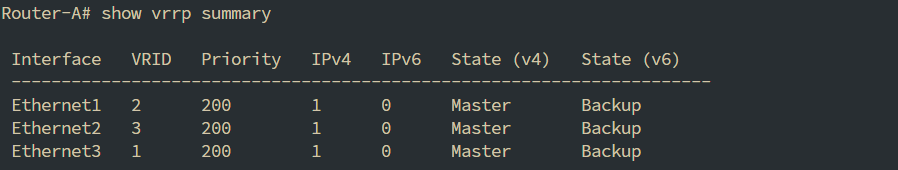

sonic# show sla brief
sonic# show ip route
sonic# show vrrp summary

Verify NAT Through ISP-B

Section titled “Verify NAT Through ISP-B”

From App-Server, generate traffic toward the same external test address:

Terminal window
app-server$ ping -c 5 203.0.113.1

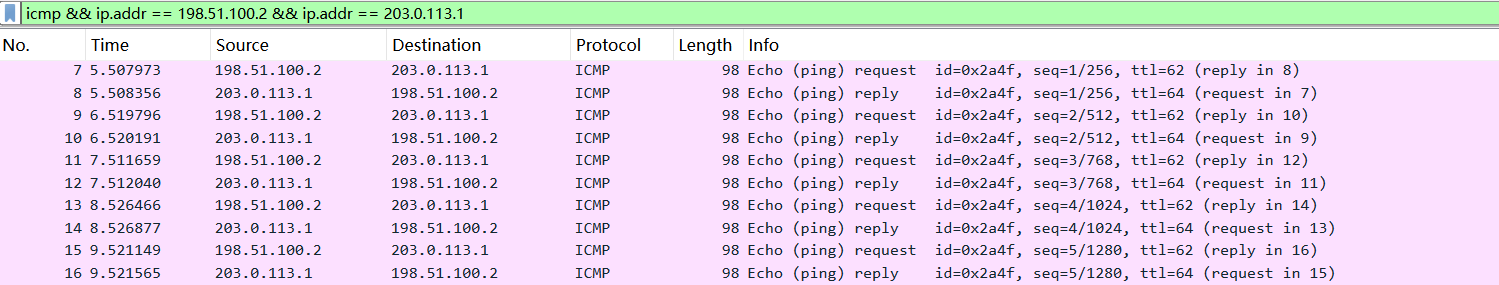

Expected translated packets on the ISP-B path:

198.51.100.2 -> 203.0.113.1     ICMP Echo request
203.0.113.1  -> 198.51.100.2    ICMP Echo reply

The translated source address changes from 192.0.2.2 to 198.51.100.2, proving that routing and NAT follow the backup WAN path.

After completing this test, restore Router-A Ethernet1 and confirm that the preferred ISP-A route is active before proceeding.

Verification 3: Router-Level Failover After Dual-WAN Loss

Section titled “Verification 3: Router-Level Failover After Dual-WAN Loss”

Trigger the Failure

Section titled “Trigger the Failure”

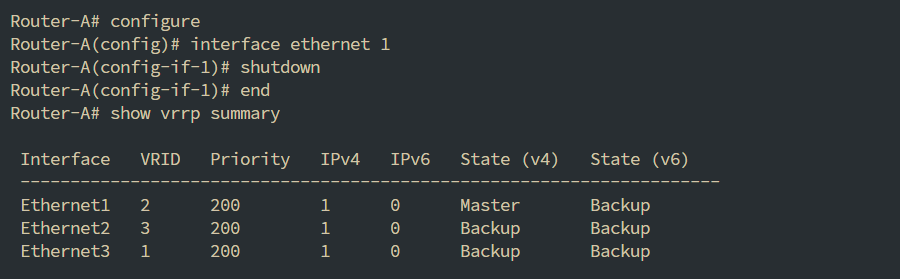

Disconnect Router-A Ethernet1 and Ethernet2 from their upstream networks while keeping Router-A powered on.

Keeping Router-A running ensures that this test validates the combined Monitor Link + VRRP behavior rather than a simple device-power-loss timeout.

Verify Router-B Takeover

Section titled “Verify Router-B Takeover”

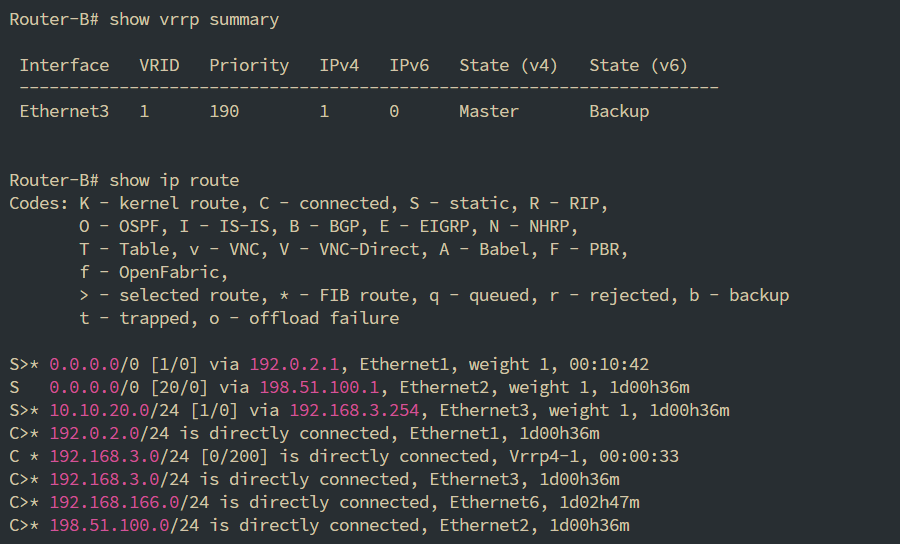

Run on Router-B:

sonic# show vrrp summary
sonic# show ip route

From App-Server, generate new traffic:

Terminal window
app-server$ ping -c 5 203.0.113.1

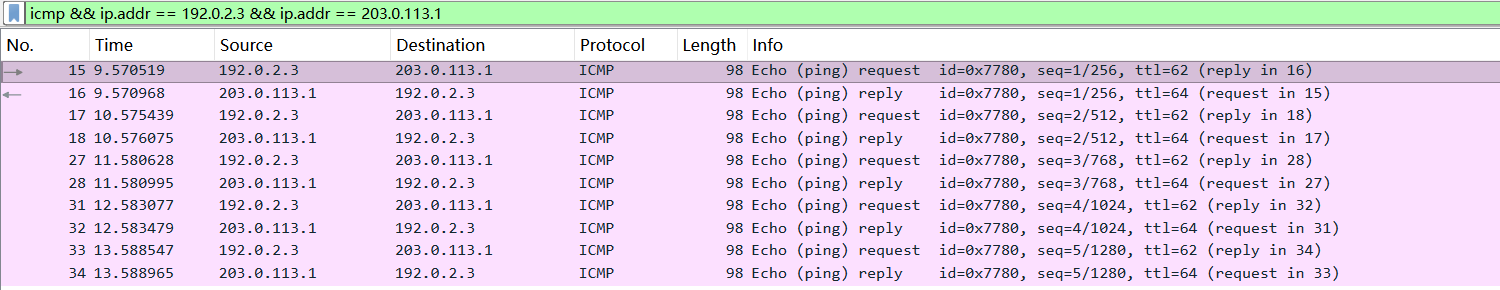

Expected translated packets on Router-B’s ISP-A path:

192.0.2.3   -> 203.0.113.1   ICMP Echo request
203.0.113.1 -> 192.0.2.3     ICMP Echo reply

The source address 192.0.2.3 proves that new traffic is now forwarded and translated by Router-B.

Expected behavior:
This scenario validates recovery for new traffic flows. Existing stateful sessions may be interrupted because Router-A and Router-B use different WAN addresses and no HA session synchronization is configured.

Scenario 2: Stateful NAT High Availability with VRRP Sync Group

Section titled “Scenario 2: Stateful NAT High Availability with VRRP Sync Group”

Scenario Overview

Section titled “Scenario Overview”

Scenario 2 publishes the same internal SSH service through two floating WAN virtual IP addresses and uses a LAN virtual IP as the downstream gateway. All three VRRP instances belong to one Sync Group and move between Router-A and Router-B as a coordinated set.

A dedicated HA link synchronizes the NAT and SPI session state required by the validated TCP flows. The verification covers continuity of established inbound static-NAT and outbound dynamic-NAT SSH sessions during failover. HA Sync also supports LB session synchronization, although LB is not configured or verified in this guide.

Preparation and Environmental Overview

Section titled “Preparation and Environmental Overview”

Network Topology Plan

Section titled “Network Topology Plan”

Target Configuration Plan

Section titled “Target Configuration Plan”

Router Interface Plan

Section titled “Router Interface Plan”
RouterISP-A / Ethernet1ISP-B / Ethernet2LAN / Ethernet3HA Sync / Ethernet4Initial VRRP Role
Router-A192.0.2.2/24198.51.100.2/24192.168.3.2/2410.255.255.1/30Master candidate, priority 200
Router-B192.0.2.3/24198.51.100.3/24192.168.3.3/2410.255.255.2/30Backup candidate, priority 190

Shared Address and Service Plan

Section titled “Shared Address and Service Plan”
FunctionAddress or PortPurpose
ISP-A next hop and test node192.0.2.1/24ISP-A gateway, SSH server, and external SSH client
ISP-B next hop and test node198.51.100.1/24ISP-B gateway and external SSH client
ISP-A WAN VIP192.0.2.100Floating public service and dynamic NAT address
ISP-B WAN VIP198.51.100.100Floating public service and dynamic NAT address
LAN VRRP VIP192.168.3.1Stable downstream next hop
Downstream transit192.168.3.254/24Router-facing downstream address
App-Server10.10.20.100/24Internal SSH server and outbound test client
Published serviceWAN VIP TCP 2022Translated to 10.10.20.100:22
HA Sync network10.255.255.0/30Dedicated session synchronization path
HA domain ID10Common HA synchronization domain

VRRP Sync Group Plan

Section titled “VRRP Sync Group Plan”
InterfaceVRIDVirtual IPSync Group
Ethernet12192.0.2.1001
Ethernet23198.51.100.1001
Ethernet31192.168.3.11

Infrastructure Prerequisites

Section titled “Infrastructure Prerequisites”

Before configuring the routers, ensure that:

  • Both routers can reach 192.0.2.1 through Ethernet1.
  • Both routers can reach 198.51.100.1 through Ethernet2.
  • Router-A Ethernet3, Router-B Ethernet3, and the downstream transit interface share the same Layer 2 domain.
  • The downstream device routes 10.10.20.0/24 and uses 192.168.3.1 as its default route.
  • App-Server uses 10.10.20.1 as its default gateway.
  • App-Server is configured as 10.10.20.100/24 and SSH is listening on TCP port 22.
  • The ISP-A test node can accept SSH connections when outbound dynamic NAT continuity is tested.
  • Router-A Ethernet4 is directly connected to Router-B Ethernet4.
  • The WAN and HA networks are isolated from one another.

This guide includes only the Router-A and Router-B configuration commands. The ISP test nodes, downstream device, and App-Server are treated as preconfigured infrastructure.

Deployment notes:
HA Sync synchronizes supported runtime session state; it does not synchronize device configuration. Router-A and Router-B must use consistent VRRP Sync Group, NAT, SPI, PBR, and routing configurations. In this validated scenario, failover is triggered by a VRRP Sync Group member interface state change. SLA and Track do not change VRRP ownership; loss of upstream reachability without a corresponding local interface-down event does not trigger the demonstrated failover.

Session reset when enabling TCP SPI:
Enabling TCP Stateful Packet Inspection on either router clears its existing TCP session state. Establish the validation sessions only after TCP SPI has been enabled on both routers.

Configure Router-A

Section titled “Configure Router-A”
sonic# configure


# Set the device hostname
sonic(config)# hostname Router-A


# Configure ISP-A and its VRRP member
sonic(config)# interface ethernet 1
sonic(config-if-1)# ip address 192.0.2.2/24
sonic(config-if-1)# nat-zone 1
sonic(config-if-1)# vrrp 2
sonic(config-if-1)# vrrp 2 priority 200
sonic(config-if-1)# vrrp 2 preempt
sonic(config-if-1)# vrrp 2 sync-group 1 priority-dec 20
sonic(config-if-1)# vrrp 2 ip 192.0.2.100/24
sonic(config-if-1)# exit


# Configure ISP-B and its VRRP member
sonic(config)# interface ethernet 2
sonic(config-if-2)# ip address 198.51.100.2/24
sonic(config-if-2)# nat-zone 1
sonic(config-if-2)# vrrp 3
sonic(config-if-2)# vrrp 3 priority 200
sonic(config-if-2)# vrrp 3 preempt
sonic(config-if-2)# vrrp 3 sync-group 1 priority-dec 20
sonic(config-if-2)# vrrp 3 ip 198.51.100.100/24
sonic(config-if-2)# exit


# Configure the LAN interface and bind the return-path policy
sonic(config)# interface ethernet 3
sonic(config-if-3)# ip address 192.168.3.2/24
sonic(config-if-3)# vrrp 1
sonic(config-if-3)# vrrp 1 priority 200
sonic(config-if-3)# vrrp 1 preempt
sonic(config-if-3)# vrrp 1 sync-group 1 priority-dec 20
sonic(config-if-3)# vrrp 1 ip 192.168.3.1/24
sonic(config-if-3)# exit


# Configure the dedicated HA synchronization link
sonic(config)# interface ethernet 4
sonic(config-if-4)# ip address 10.255.255.1/30
sonic(config-if-4)# exit


# Enable NAT and publish the internal SSH service through both WAN VIPs
sonic(config)# nat enable
sonic(config)# nat static tcp 192.0.2.100 2022 10.10.20.100 22 dnat extendable ispa-ssh
sonic(config)# nat static tcp 198.51.100.100 2022 10.10.20.100 22 dnat extendable ispb-ssh


# Use the floating WAN addresses for dynamic outbound NAT
sonic(config)# nat pool ispa-pool 192.0.2.100
sonic(config)# nat pool ispb-pool 198.51.100.100
sonic(config)# nat binding ispa-binding ispa-pool
sonic(config)# nat binding ispb-binding ispb-pool


# Configure the normal and backup default routes
sonic(config)# ip route 0.0.0.0/0 192.0.2.1
sonic(config)# ip route 0.0.0.0/0 198.51.100.1 20
sonic(config)# ip route 10.10.20.0/24 192.168.3.254


# Preserve symmetric return routing for connections received through ISP-A
sonic(config)# pbr-map ha-pbr seq 10
sonic(config-pbr-ha-pbr-10)# match src-ip 10.10.20.0/24
sonic(config-pbr-ha-pbr-10)# set nexthop 192.0.2.1
sonic(config-pbr-ha-pbr-10)# src_interface 1
sonic(config-pbr-ha-pbr-10)# exit


# Preserve symmetric return routing for connections received through ISP-B
sonic(config)# pbr-map ha-pbr seq 20
sonic(config-pbr-ha-pbr-20)# match src-ip 10.10.20.0/24
sonic(config-pbr-ha-pbr-20)# set nexthop 198.51.100.1
sonic(config-pbr-ha-pbr-20)# src_interface 2
sonic(config-pbr-ha-pbr-20)# exit


sonic(config)# interface ethernet 3
sonic(config-if-3)# pbr-policy ha-pbr
sonic(config-if-3)# exit
# Enable TCP state tracking
sonic(config)# stateful-packet-inspection enable tcp


# Configure HA session synchronization
sonic(config)# ha_sync enable
sonic(config)# ha_sync global
sonic(config-ha-sync)# domain_id 10
sonic(config-ha-sync)# peer_address 10.255.255.2
sonic(config-ha-sync)# src_address 10.255.255.1
sonic(config-ha-sync)# src_intfc ethernet 4
sonic(config-ha-sync)# exit


# Save the configuration
sonic(config)# end
sonic# write

Configure Router-B

Section titled “Configure Router-B”
sonic# configure


# Set the device hostname
sonic(config)# hostname Router-B


# Configure ISP-A and its VRRP member
sonic(config)# interface ethernet 1
sonic(config-if-1)# ip address 192.0.2.3/24
sonic(config-if-1)# nat-zone 1
sonic(config-if-1)# vrrp 2
sonic(config-if-1)# vrrp 2 priority 190
sonic(config-if-1)# vrrp 2 preempt
sonic(config-if-1)# vrrp 2 sync-group 1 priority-dec 20
sonic(config-if-1)# vrrp 2 ip 192.0.2.100/24
sonic(config-if-1)# exit


# Configure ISP-B and its VRRP member
sonic(config)# interface ethernet 2
sonic(config-if-2)# ip address 198.51.100.3/24
sonic(config-if-2)# nat-zone 1
sonic(config-if-2)# vrrp 3
sonic(config-if-2)# vrrp 3 priority 190
sonic(config-if-2)# vrrp 3 preempt
sonic(config-if-2)# vrrp 3 sync-group 1 priority-dec 20
sonic(config-if-2)# vrrp 3 ip 198.51.100.100/24
sonic(config-if-2)# exit


# Configure the LAN interface and bind the return-path policy
sonic(config)# interface ethernet 3
sonic(config-if-3)# ip address 192.168.3.3/24
sonic(config-if-3)# vrrp 1
sonic(config-if-3)# vrrp 1 priority 190
sonic(config-if-3)# vrrp 1 preempt
sonic(config-if-3)# vrrp 1 sync-group 1 priority-dec 20
sonic(config-if-3)# vrrp 1 ip 192.168.3.1/24
sonic(config-if-3)# exit


# Configure the dedicated HA synchronization link
sonic(config)# interface ethernet 4
sonic(config-if-4)# ip address 10.255.255.2/30
sonic(config-if-4)# exit


# Enable NAT and install the same static service mappings
sonic(config)# nat enable
sonic(config)# nat static tcp 192.0.2.100 2022 10.10.20.100 22 dnat extendable ispa-ssh
sonic(config)# nat static tcp 198.51.100.100 2022 10.10.20.100 22 dnat extendable ispb-ssh


# Use the floating WAN addresses for dynamic outbound NAT
sonic(config)# nat pool ispa-pool 192.0.2.100
sonic(config)# nat pool ispb-pool 198.51.100.100
sonic(config)# nat binding ispa-binding ispa-pool
sonic(config)# nat binding ispb-binding ispb-pool


# Configure the normal and backup default routes
sonic(config)# ip route 0.0.0.0/0 192.0.2.1
sonic(config)# ip route 0.0.0.0/0 198.51.100.1 20
sonic(config)# ip route 10.10.20.0/24 192.168.3.254


# Preserve symmetric return routing for connections received through ISP-A
sonic(config)# pbr-map ha-pbr seq 10
sonic(config-pbr-ha-pbr-10)# match src-ip 10.10.20.0/24
sonic(config-pbr-ha-pbr-10)# set nexthop 192.0.2.1
sonic(config-pbr-ha-pbr-10)# src_interface 1
sonic(config-pbr-ha-pbr-10)# exit


# Preserve symmetric return routing for connections received through ISP-B
sonic(config)# pbr-map ha-pbr seq 20
sonic(config-pbr-ha-pbr-20)# match src-ip 10.10.20.0/24
sonic(config-pbr-ha-pbr-20)# set nexthop 198.51.100.1
sonic(config-pbr-ha-pbr-20)# src_interface 2
sonic(config-pbr-ha-pbr-20)# exit


sonic(config)# interface ethernet 3
sonic(config-if-3)# pbr-policy ha-pbr
sonic(config-if-3)# exit
# Enable TCP state tracking
sonic(config)# stateful-packet-inspection enable tcp


# Configure HA session synchronization
sonic(config)# ha_sync enable
sonic(config)# ha_sync global
sonic(config-ha-sync)# domain_id 10
sonic(config-ha-sync)# peer_address 10.255.255.1
sonic(config-ha-sync)# src_address 10.255.255.2
sonic(config-ha-sync)# src_intfc ethernet 4
sonic(config-ha-sync)# exit


# Save the configuration
sonic(config)# end
sonic# write

Verification

Section titled “Verification”

Static NAT Through Both WAN VIPs

Section titled “Static NAT Through Both WAN VIPs”

From the ISP-A test node, connect to the App-Server through the ISP-A WAN VIP:

Terminal window
isp-a$ ssh -p 2022 <username>@192.0.2.100

From the ISP-B test node, connect to the same App-Server through the ISP-B WAN VIP:

Terminal window
isp-b$ ssh -p 2022 <username>@198.51.100.100

Expected result:

  • Both SSH sessions are established successfully.

Initial VRRP Sync Group State

Section titled “Initial VRRP Sync Group State”

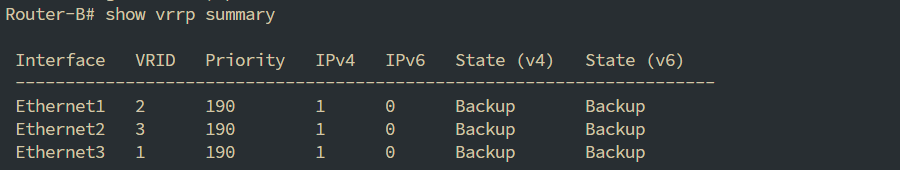

Before triggering the failover, check the VRRP state on both routers:

# Check Router-A
Router-A# show vrrp summary


# Check Router-B
Router-B# show vrrp summary

Expected initial state:

RouterEthernet1 / VRID 2Ethernet2 / VRID 3Ethernet3 / VRID 1
Router-AMasterMasterMaster
Router-BBackupBackupBackup

WAN-to-LAN Session Continuity

Section titled “WAN-to-LAN Session Continuity”

Establish the SSH Session

Section titled “Establish the SSH Session”

From the ISP-B test node, connect to the App-Server through the ISP-B WAN VIP:

Terminal window
isp-b$ ssh -p 2022 <username>@198.51.100.100

Confirm that the SSH session is stable before triggering the failover. Keep the session open.

Trigger the Sync Group Failover

Section titled “Trigger the Sync Group Failover”

On Router-A, shut down Ethernet1:

Router-A# configure
Router-A(config)# interface ethernet 1
Router-A(config-if-1)# shutdown
Router-A(config-if-1)# exit
Router-A(config)# end

Ethernet1 carries VRID 2, which is a member of Sync Group 1. Its failure causes the remaining WAN and LAN VRRP members to move to Router-B as one coordinated group.

Verify the VRRP State

Section titled “Verify the VRRP State”

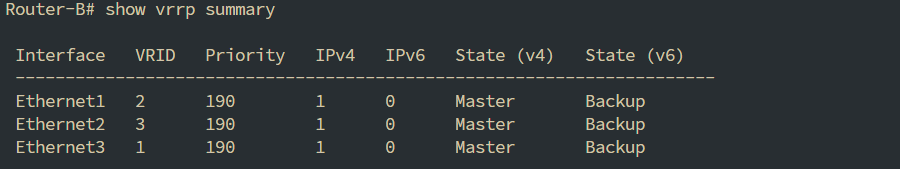

Run the following commands after the state has converged:

# Check Router-A
Router-A# show vrrp summary


# Check Router-B
Router-B# show vrrp summary

Expected result:

RouterEthernet1 / VRID 2Ethernet2 / VRID 3Ethernet3 / VRID 1
Router-AMasterBackupBackup
Router-BMasterMasterMaster

Router-B should become Master for both WAN VIPs and the LAN VIP.

On Router-A:

  • Ethernet2 and Ethernet3 should no longer remain active Master members.
  • Ethernet1 may still display Master in show vrrp summary after the interface has been shut down.

The displayed state of the administratively down interface may not be refreshed after it loses connectivity. This does not mean that Router-A still actively owns or advertises the Ethernet1 virtual IP. Router-B becoming Master for VRID 2 is the effective takeover result.

Verify Session Continuity

Section titled “Verify Session Continuity”

Return to the SSH session that was established through:

198.51.100.100:2022

Expected result:

  • The existing SSH session remains connected.
  • A brief pause may occur during the VRRP transition.
  • The user is not required to reconnect or authenticate again.

LAN-to-WAN Session Continuity

Section titled “LAN-to-WAN Session Continuity”

Restore the Initial VRRP State

Section titled “Restore the Initial VRRP State”

Restore Router-A Ethernet1:

Router-A# configure
Router-A(config)# interface ethernet 1
Router-A(config-if-1)# no shutdown
Router-A(config-if-1)# exit
Router-A(config)# end

After the VRRP state stabilizes, confirm that Router-A has recovered the Master role:

Router-A# show vrrp summary
Router-B# show vrrp summary

Expected state:

RouterEthernet1 / VRID 2Ethernet2 / VRID 3Ethernet3 / VRID 1
Router-AMasterMasterMaster
Router-BBackupBackupBackup

Establish the Outbound SSH Session

Section titled “Establish the Outbound SSH Session”

From App-Server, connect to the ISP-A test node:

Terminal window
app-server$ ssh <username>@192.0.2.1

Confirm that the SSH session is stable before triggering the failover. Keep the session open.

This connection is initiated from the LAN and is dynamically translated through the ISP-A WAN VIP.

Trigger the Sync Group Failover

Section titled “Trigger the Sync Group Failover”

Shut down Router-A Ethernet1 again:

Router-A# configure
Router-A(config)# interface ethernet 1
Router-A(config-if-1)# shutdown
Router-A(config-if-1)# exit
Router-A(config)# end

Verify the VRRP state:

Router-A# show vrrp summary
Router-B# show vrrp summary

Expected result:

RouterEthernet1 / VRID 2Ethernet2 / VRID 3Ethernet3 / VRID 1
Router-AMasterBackupBackup
Router-BMasterMasterMaster

Verify Session Continuity

Section titled “Verify Session Continuity”

Return to the SSH session initiated from App-Server to 192.0.2.1.

Expected result:

  • The existing SSH session remains connected.
  • A brief pause may occur while the VRRP Sync Group changes ownership.
  • The user is not required to reconnect.

Recovery

Section titled “Recovery”

Restore Router-A Ethernet1:

Router-A# configure
Router-A(config)# interface ethernet 1
Router-A(config-if-1)# no shutdown
Router-A(config-if-1)# exit
Router-A(config)# end

Verify the VRRP state:

Router-A# show vrrp summary
Router-B# show vrrp summary

Because Router-A has the higher priority and preemption is enabled on every member, the expected recovered state is:

RouterEthernet1 / VRID 2Ethernet2 / VRID 3Ethernet3 / VRID 1
Router-AMasterMasterMaster
Router-BBackupBackupBackup

Conclusion

Section titled “Conclusion”

This guide has successfully demonstrated the comprehensive high-availability (HA) capabilities of the AsterNOS-VPP edge gateway. By walking through two distinct, enterprise-grade deployment scenarios, we have validated the system’s ability to deliver both link-level redundancy and seamless device-level resiliency.

  • In Scenario 1, we built a robust dual-WAN routing architecture. By integrating dynamic NAT, SLA-based route tracking, and Monitor Link, the gateway ensures continuous outbound Internet access, intelligently routing around ISP failures and seamlessly transferring the LAN virtual gateway to a standby device when necessary.
  • In Scenario 2, we elevated the architecture to support stateful session synchronization. Through the implementation of a VRRP Sync Group, policy-based return routing (PBR), and dedicated HA data links, AsterNOS-VPP successfully preserved established TCP connections—for both inbound published services and outbound dynamic NAT—during a complete device failover.

Together, these validated configurations confirm that AsterNOS-VPP is fully equipped to serve as a secure, uninterrupted, and highly reliable edge gateway, ensuring maximum uptime and seamless service delivery for mission-critical enterprise networks.
