Port Isolation Configuration

Port isolation allows the isolation of ports within the same VLAN. By adding ports to an isolation group, isolation between Layer 2 data packets and multicast packets can be achieved for the ports within the isolation group. Traffic between ports within the isolation group and ports not added to the isolation group is not affected by the isolation group and can flow bidirectionally.

Configuring Port Isolation Groups

Operation	Command	Description
Enter the system configuration view	configure
Create and enter isolation group view	port-isolate-group ID
Enter interface view	interface ethernet ID
Add interface to isolation group	port-isolate ID

Configuration Example

Network requirements

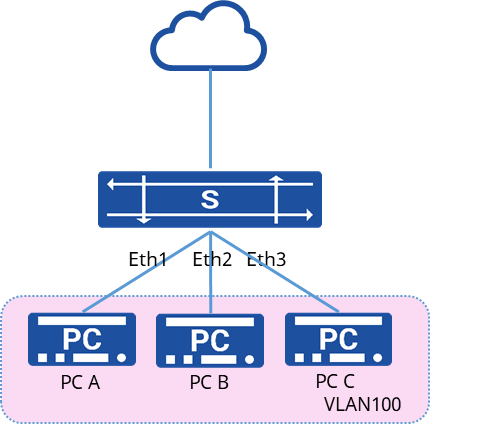

A cell has multiple users, and now requires that the users cannot interoperate with each other’s Layer 2 messages, but all can access the external network.

Procedure

1. Create a VLAN and add the interface to the VLAN

sonic(config)# vlan 100
sonic(config)# port-group ethernet 1-4
sonic(config-port-group-1-4)# switchport access vlan 100

2. Create port isolation group

sonic(config)# port-isolate-group 1
sonic(config-port-isolate-group-1)# interface 1,2,3

Verify configuration

1. View the port ioslation group configuration

sonic# show port-isolate-group
+------------+-------------+--------+
| Group ID   | Interface   | Mode   |
+============+=============+========+
|     1      |  Ethernet1  | L2     |
|            |  Ethernet2  |        |
|            |  Ethernet3  |        |
+------------+-------------+--------+

2. No interoperability between PCs, all PCs can access the external network
