VxLAN Configuration

The current VXLAN tunnel establishment method supported by the device is: manual creation, specifying the source IP address of the tunnel as the local Loopback port IP address, and binding the VLAN to the VNI. The packets received from the local site are judged to belong to the VXLAN tunnel according to the VLAN information, and for the VXLAN messages received from the VXLAN tunnel, the Layer 2 broadcast domain to which the packets belong is judged according to the VNI ID.

Establishing VXLAN tunnel by static method

Section titled “Establishing VXLAN tunnel by static method”

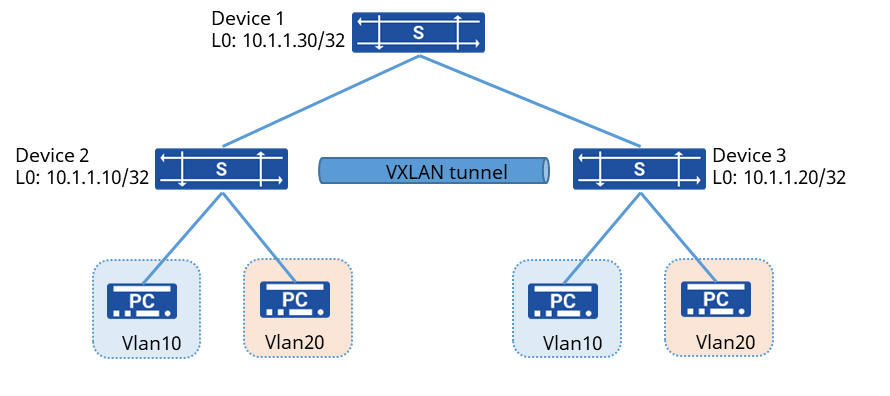

Network requirements

An enterprise needs to build its own campus network, using static configuration to achieve Layer 2 interoperability through VXLAN virtual networks for users in different physical locations in the same department.

Procedure

  1. Device 2 configuration # Create VLAN add add member interface
sonic(config)# vlan 10
sonic(config-vlan-10)# vni 10
sonic(config-vlan-10)# exit
sonic(config)# interface ethernet 1
sonic(config-if-1)# switchport access vlan 10
sonic(config)# vlan 20
sonic(config-vlan-20)# vni 20
sonic(config-vlan-20)# exit
sonic(config)# interface ethernet 2
sonic(config-if-2)# switchport access vlan 20

# Establish BGP neighbors with Device 1

sonic(config)# interface ethernet 49
sonic(config-if-49)# ip address 10.1.1.1/30
sonic(config)# interface loopback 0
sonic(config-loif-0)# ip address 10.1.1.10/32
sonic(config)# router bgp 65100
sonic(config-router)# bgp router-id 10.1.1.10
sonic(config-router)# no bgp ebgp-requires-policy
sonic(config-router)# no bgp default ipv4-unicast
sonic(config-router)# neighbor 10.1.1.2 remote-as 65101
sonic(config-router)# neighbor 10.1.1.2 description Device1
sonic(config-router)# address-family ipv4 unicast
sonic(config-router-af)# neighbor PEER_V4_EBGP activate
sonic(config-router-af)# network 10.1.1.10/32
sonic(config-router-af)# exit

# Create a VXLAN tunnel and specify the remote VTEP IP

sonic(config)# interface vxlan 0
sonic(config-vxlanif-0)# source 10.1.1.10
This setting need save config and restart to take effect.
sonic(config-vxlanif-0)# vni 10 peer 10.1.1.20
sonic(config-vxlanif-0)# vni 20 peer 10.1.1.20
sonic(config-vxlanif-0)# exit
sonic# write
save running-config...
Existing files will be overwritten, continue? [y/N]: y
Running command: /usr/local/bin/sonic-cfggen -d --print-data > /etc/sonic/config_db.json
sonic# reboot
  1. Device 3 Configuration # Interface configuration IP address section and BGP configuration is the same as Device 1, omitted here # Create a VXLAN tunnel and specify the remote VTEP IP
sonic(config)# interface vxlan 0
sonic(config-vxlanif-0)# source 10.1.1.20
This setting need save config and restart to take effect.
sonic(config-vxlanif-0)# vni 10 peer 10.1.1.10
sonic(config-vxlanif-0)# vni 20 peer 10.1.1.10
sonic(config-vxlanif-0)# exit
sonic# write
save running-config...
Existing files will be overwritten, continue? [y/N]: y
Running command: /usr/local/bin/sonic-cfggen -d --print-data > /etc/sonic/config_db.json
sonic# reboot
  1. Device 1 Configuration # Configure IP address omitted here # Establish BGP neighbors with device 2, device 3
sonic(config)# router bgp 65101
sonic(config-router)# bgp router-id 10.1.1.30
sonic(config-router)# no bgp ebgp-requires-policy
sonic(config-router)# no bgp default ipv4-unicast
sonic(config-router)# neighbor PEER_V4_EBGP peer-group
sonic(config-router)# neighbor 10.1.1.2 remote-as 65100
sonic(config-router)# neighbor 10.1.1.2 description Device2
sonic(config-router)# neighbor 10.1.1.2 peer-group PEER_V4_EBGP
sonic(config-router)# neighbor 10.1.1.5 remote-as 65100
sonic(config-router)# neighbor 10.1.1.5 description Device3
sonic(config-router)# neighbor 10.1.1.5 peer-group PEER_V4_EBGP
sonic(config-router)# address-family ipv4 unicast
sonic(config-router-af)# neighbor PEER_V4_EBGP activate
sonic(config-router-af)# neighbor PEER_V4_EBGP as-override
sonic(config-router-af)# exit

Verify configuration

  1. Check the VXLAN tunnel information
sonic(config)# do show evpn tunnel
+---------------------------+-------+
| tunnel                    |  vni  |
+===========================+=======+
| VTTNL10.1.1.10_10.1.1.20  |  10   |
|                           |  20   |
+---------------------------+-------+
  1. PC1 and PC3, PC2 and PC4 can communicate with each other
  2. Check the MAC table entries
sonic(config)# do show mac-address
 No.  vlan    MacAddress         Port                       Type
----- ------ -----------------  --------------------------- -------
  1   10      00:00:02:01:01:02 VTTNL10.1.1.10_10.1.1.20   Dynamic
  2   10      00:00:02:01:01:03 Ethernet1                  Dynamic
  3   20      00:00:12:01:01:02 VTTNL10.1.1.10_10.1.1.20   Dynamic
  4   20      00:00:12:01:01:03 Ethernet2                  Dynamic

Establishing VXLAN tunnel by EVPN

Section titled “Establishing VXLAN tunnel by EVPN”

Network requirements

An enterprise needs to build its own campus network, using static configuration to achieve Layer 2 interoperability through VXLAN virtual networks for users in different physical locations in the same department.

Procedure

  1. Device 2 configuration # Create VLAN add add member interface
sonic(config)# vlan 10
sonic(config-vlan-10)# vni 10
sonic(config-vlan-10)# exit
sonic(config)# interface ethernet 1
sonic(config-if-1)# switchport access vlan 10
sonic(config)# vlan 20
sonic(config-vlan-20)# vni 20
sonic(config-vlan-20)# exit
sonic(config)# interface ethernet 2
sonic(config-if-2)# switchport access vlan 20

# Establish BGP neighbors with Device 1

sonic(config)# interface ethernet 49
sonic(config-if-49)# ip address 10.1.1.1/30
sonic(config)# interface loopback 0
sonic(config-loif-0)# ip address 10.1.1.10/32
sonic(config)# router bgp 65100
sonic(config-router)# bgp router-id 10.1.1.10
sonic(config-router)# no bgp ebgp-requires-policy
sonic(config-router)# no bgp default ipv4-unicast
sonic(config-router)# neighbor 10.1.1.2 remote-as 65101
sonic(config-router)# neighbor 10.1.1.2 description Device1
sonic(config-router)# address-family ipv4 unicast
sonic(config-router-af)# neighbor PEER_V4_EBGP activate
sonic(config-router-af)# network 10.1.1.10/32
sonic(config-router-af)# exit

# Enable L2 VPN

sonic(config-router)# address-family l2vpn evpn
sonic(config-router-af)# neighbor 10.1.1.2 activate
sonic(config-router-af)# advertise-all-vni
sonic(config-router-af)# exit

# Create VXLAN tunnel

sonic(config)# interface vxlan 0
sonic(config-vxlanif-0)# source 10.1.1.10
This setting need save config and restart to take effect.
sonic(config-vxlanif-0)# exit
sonic# write
save running-config...
Existing files will be overwritten, continue? [y/N]: y
Running command: /usr/local/bin/sonic-cfggen -d --print-data > /etc/sonic/config_db.json
sonic# reboot
  1. Device 3 configuration # Interface configuration IP address section and EVPN configuration is the same as Device 1, omitted here # Create VXLAN tunnel
sonic(config)# interface vxlan 0
sonic(config-vxlanif-0)# source 10.1.1.20
This setting need save config and restart to take effect.
sonic(config-vxlanif-0)# exit
sonic# write
save running-config...
Existing files will be overwritten, continue? [y/N]: y
Running command: /usr/local/bin/sonic-cfggen -d --print-data > /etc/sonic/config_db.json
sonic# reboot
  1. Device 1 configuration # Omit the IP address configuration process # Establish EVPN neighbors with device 2,3
sonic(config)# router bgp 65101
sonic(config-router)# bgp router-id 10.1.1.30
sonic(config-router)# no bgp ebgp-requires-policy
sonic(config-router)# no bgp default ipv4-unicast
sonic(config-router)# neighbor PEER_V4_EBGP peer-group
sonic(config-router)# neighbor 10.1.1.2 remote-as 65100
sonic(config-router)# neighbor 10.1.1.2 description Device2
sonic(config-router)# neighbor 10.1.1.2 peer-group PEER_V4_EBGP
sonic(config-router)# neighbor 10.1.1.5 remote-as 65100
sonic(config-router)# neighbor 10.1.1.5 description Device3
sonic(config-router)# neighbor 10.1.1.5 peer-group PEER_V4_EBGP
sonic(config-router)# address-family ipv4 unicast
sonic(config-router-af)# neighbor PEER_V4_EBGP activate
sonic(config-router-af)# neighbor PEER_V4_EBGP as-override
sonic(config-router-af)# exit

# Enable L2VPN

sonic(config-router)# address-family l2vpn evpn
sonic(config-router-af)# neighbor PEER_V4_EBGP activate
sonic(config-router-af)# advertise-all-vni
sonic(config-router-af)# exit

Verify configuration

  1. Check the VXLAN tunnel information
sonic(config)# do show evpn tunnel
+---------------------------+-------+
| tunnel                    |  vni  |
+===========================+=======+
| VTTNL10.1.1.10_10.1.1.20  |  10   |
|                           |  20   |
+---------------------------+-------+
  1. PC1 and PC3, PC2 and PC4 can communicate with each other
  2. Check the MAC table entries
sonic(config)# do show mac-address
 No.   vlan    MacAddress         Port                       Type
----- ------ -----------------   --------------------------- -------
  1    10      00:00:02:01:01:02  VTTNL10.1.1.10_10.1.1.20   Dynamic
  2    10      00:00:02:01:01:03  Ethernet1                  Dynamic
  3    20      00:00:12:01:01:02  VTTNL10.1.1.10_10.1.1.20   Dynamic
  4    20      00:00:12:01:01:03  Ethernet2                  Dynamic

Establishing Multicast-VXLAN tunnel

Section titled “Establishing Multicast-VXLAN tunnel”

Network requirements

The enterprise has established a relatively mature multimedia transmission network, with servers distributed across different departments. Currently, BUM (Broadcast, Unknown Unicast, Multicast) traffic from audio and video collection devices is transmitted using a tunnel-based head-end replication method, which leads to bandwidth inefficiency. The customer now wishes to build a virtual network over the existing transmission infrastructure with the following requirements:

Deliver audio and video services (BUM traffic) from collection devices scattered across different departments to respective target departments on demand, enabling flexible service deployment.

Numerous VMs are deployed on each server. Layer 2 connectivity is required between servers in the same subnet. The VXLAN Layer 3 gateway function is moved down to the VXLAN access devices, where a distributed gateway architecture is adopted to optimize forwarding paths.

As shown in the diagram, for the audio and video BUM traffic from the collection side on DeviceB:BUM traffic in VLAN 10 should be forwarded via tunnel only to the servers under DeviceC.BUM traffic in VLAN 20 should be forwarded via tunnel to servers under both DeviceC and DeviceD.

Procedure

  1. Configure routing protocol

# Configure the IP addresses for each interface on DeviceA. The configuration for DeviceB, DeviceC, and DeviceD is similar to DeviceA.Establish BGP neighbors between DeviceA and DeviceB, DeviceC, and DeviceD respectively. Advertise the Loopback interface addresses to ensure reachability between Loopback addresses of all devices (e.g., via ping).Enable PIM and IP multicast forwarding on the relevant interfaces.

sonic(config)# interface ethernet 49
sonic(config-if-49)# ip address 20.1.1.1/30
sonic(config-if-49)# ip pim
sonic(config-if-49)# multicast-enable
sonic(config)# interface ethernet 50
sonic(config-if-50)# ip address 30.1.1.1/30
sonic(config-if-50)# ip pim
sonic(config-if-50)# multicast-enable
sonic(config)# interface ethernet 51
sonic(config-if-51)# ip address 40.1.1.1/30
sonic(config-if-51)# ip pim
sonic(config-if-51)# multicast-enable
sonic(config)# interface loopback 0
sonic(config-loif-0)# ip address 10.1.1.1/32
sonic(config-loif-0)# ip pim
sonic(config)# router bgp 65100
sonic(config-router)# bgp router-id 10.1.1.1
sonic(config-router)# no bgp ebgp-requires-policy
sonic(config-router)# no bgp default ipv4-unicast
sonic(config-router)# neighbor 20.1.1.2 remote-as 65101
sonic(config-router)# neighbor 20.1.1.2 description DeviceB
sonic(config-router)# neighbor 30.1.1.2 remote-as 65101
sonic(config-router)# neighbor 30.1.1.2 description DeviceC
sonic(config-router)# neighbor 40.1.1.2 remote-as 65101
sonic(config-router)# neighbor 40.1.1.2 description DeviceD
sonic(config-router)# address-family ipv4 unicast
sonic(config-router-af)# neighbor 20.1.1.2 activate
sonic(config-router-af)# neighbor 30.1.1.2 activate
sonic(config-router-af)# neighbor 40.1.1.2 activate
sonic(config-router-af)# network 10.1.1.1/32
sonic(config-router-af)# exit
sonic(config-router)# address-family l2vpn evpn
sonic(config-router-af)# neighbor 10.1.1.2 activate
sonic(config-router-af)# neighbor 10.1.1.3 activate
sonic(config-router-af)# neighbor 10.1.1.4 activate
sonic(config-router-af)# advertise-all-vni
  1. Configure VLAN access settings on DeviceB, DeviceC, and DeviceD respectively.
sonic(config)# vlan 10
sonic(config-vlan-10)# vni 10
sonic(config-vlan-10)# arp-trap enable
sonic(config)# vlan 20
sonic(config-vlan-20)# vni 20
sonic(config-vlan-20)# arp-trap enable
sonic(config)# interface ethernet 1
sonic(config-if-1)# switchport trunk vlan 10
sonic(config-if-1)# switchport trunk vlan 20
sonic(config)# interface vlan 10
sonic(config-vlanif-10)# ip address 100.1.1.1/24
sonic(config-vlanif-10)# arp-proxy mode evpn
sonic(config)# interface vlan 20
sonic(config-vlanif-20)# ip address 200.1.1.1/24
sonic(config-vlanif-20)# arp-proxy mode evpn
  1. Configure VXLAN tunnel settings on DeviceB, DeviceC, and DeviceD respectively, specifying the destination address and corresponding VNI. The following example uses DeviceB for illustration:
sonic(config)# interface vxlan 0
sonic(config-vxlanif-0)# source 10.1.1.2
sonic(config-vxlanif-0)# vni 10 peer 10.1.1.3
sonic(config-vxlanif-0)# vni 10 peer 10.1.1.4
sonic(config-vxlanif-0)# vni 20 peer 10.1.1.3
sonic(config-vxlanif-0)# vni 20 peer 10.1.1.4
  1. Configure Multicast VXLAN tunnels on DeviceB, DeviceC, and DeviceD.
sonic(config)# interface vxlan 0
sonic(config-vxlanif-0)# vni 10 mcast-group 224.1.1.10
sonic(config-vxlanif-0)# vni 20 mcast-group 224.1.1.20
  1. Configure static multicast route on DeviceB.
sonic(config)# interface loopback 0
sonic(config-loif-0)# ip mroute ethernet 49 224.1.1.10 10.1.1.2
sonic(config-loif-0)# ip mroute ethernet 49 224.1.1.20 10.1.1.2
  1. Configure static multicast routes on DeviceA:Forward BUM traffic from VLAN10 to DeviceC.Forward BUM traffic from VLAN20 to both DeviceC and DeviceD.
sonic(config)# interface ethernet 49
sonic(config-if-49)# ip mroute ethernet 50 224.1.1.10 10.1.1.2
sonic(config-if-49)# ip mroute ethernet 50 224.1.1.20 10.1.1.2
sonic(config-if-49)# ip mroute ethernet 51 224.1.1.20 10.1.1.2

Verify configuration

  1. BUM traffic from VLAN 10 on DeviceB is forwarded only to servers in VLAN 10 under DeviceC through the multicast tunnel.
  2. BUM traffic from VLAN 20 on DeviceB is forwarded to servers in VLAN 20 under both DeviceC and DeviceD through the multicast tunnel.
  3. Unicast traffic between endpoints connected to DeviceB, DeviceC, and DeviceD continues to be forwarded using unicast tunnels.
