ARP Attack Detection Configuration

ARP attack detection is one of the common methods to prevent ARP spoofing. It is used to detect ARP packets based on DHCP Snooping and static binding entries on access devices, preventing ARP attacks from unauthorized users.

Explanation of Principles

The method for user legitimacy check involves matching the sender’s IP address and source MAC address in the ARP packet with the static binding entries and DHCP Snooping secure entries on the device. If there is a match between the sender’s IP address and source MAC address in the ARP packet and any of the entries on the device, the ARP packet is considered legitimate and will be forwarded. Otherwise, if no match is found, the packet is considered illegitimate and will be dropped.

ARP trust interfaces do not undergo user legitimacy checks, while ARP untrusted interfaces require user legitimacy checks to prevent attacks from spoofed users.

ARP Attack Detection Configuration

Configure Tasks	Instructions
Enable ARP Attack Detection	Required
Configure ARP Attack Detection trusted ports	Optional

Enabling ARP Attack Detection

Operation	Command	Description
Enter the system configuration view	configure terminal
Enter the VLAN view	VLAN ID
Enable ARP Attack Detection	arp anti-attack-check enable

Configuring ARP Attack Detection Trusted Ports

For interfaces configured as trusted for ARP attack detection, if a specific VLAN on that interface has ARP attack detection enabled, then ARP packets carrying that VLAN ID will bypass ARP attack detection and be forwarded without any checks.

Operation	Command	Description
Enter the system configuration view	configure terminal
Enter the interface view	interface ethernet interface-id
Configure ARP Attack Detection trusted ports	arp anti-attack-check trusted-interface vlan vlan-id

Configuration Examples

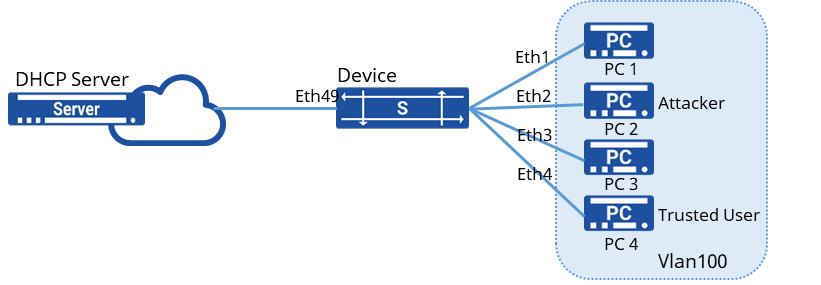

Network requirements

Users access the network through the switch, all users are known to be under the same VLAN100, and all users obtain IP addresses through DHCP Server. The administrator wants to enable the DAI function on the switch to prevent any illegal users from attacking the device by sending illegal ARP messages, which requires:

• PC 1 is a dumb terminal and requires static IP address configuration
• PC 4 is a trusted user and does not perform DAI checks

Procedure

1. Omit VLAN creation and VLANif interface configuration
2. Enable DHCP relay function

sonic(config)# dhcp-relay test v4
sonic(config-dhcp-relay-test__v4)# down_link interface vlan 100
sonic(config-dhcp-relay-test__v4)# up_link interface 49
sonic(config-dhcp-relay-test__v4)# server_ip 10.10.1.1
sonic(config-dhcp-relay-test__v4)# loopback_interface loopback 0
sonic(config-dhcp-relay-test__v4)# exit

3. Enable DHCP Snooping

sonic(config)# dhcp snooping enable
sonic(config)# interface vlan 100
sonic(config-vlanif-100)# dhcp-snooping enable

4. Configure the interface to which the DHCP Server is connected as a trusted port

sonic(config)# interface ethernet 49
sonic(config-if-49)# dhcp-snooping enable
sonic(config-if-49)# dhcp-snooping trusted

5. Enable DAI function and configure Ethernet4 port as a trusted port

sonic(config)# vlan 100
sonic(config-vlan-100)# arp anti-attack-check trusted-interface Ethernet4
sonic(config-vlan-100)# arp anti-attack-check enable

6. Add a static table entry corresponding to the IP address and MAC of PC 1

sonic(config)# user-bind rule 10.100.3.1 00:00:00:01:00:01 1 100

Verify configuration

1. View device configuration. # View Snooping static binding table entries

sonic# show user-bind rule
VLAN     MAC              IP        Interface
------- ----------------- -------   -----------
Vlan100 00:00:00:01:00:01 10.100.3.1 Ethernet1

Total : 1

# View DAI function configuration

sonic# show anti-attack-check config
+--------------+--------------+
| Interfaces   | Check mode   |
+==============+==============+
| Vlan100      | true         |
+--------------+--------------+

2. PC 2 as the attacker, all outgoing ARP messages are discarded
