MACsec configuration

MACsec (Media Access Control Security) is a security technology based on the link layer (L2) and defined in the IEEE 802.1AE standard. It achieves data confidentiality and tamper resistance at the physical link layer by encrypting and protecting the integrity of data frames on Ethernet links.

MACsec encrypts the payload of Ethernet frames using symmetric key encryption algorithms (such as AES-GCM) and appends an integrity check value (ICV) to each frame to prevent man-in-the-middle attacks and replay attacks. Key negotiation is performed by the MKA (MACsec Key Agreement) protocol, which supports static pre-shared keys and dynamic key distribution (such as via 802.1X).

MACsec is suitable for point-to-point links, is easy to deploy, transparent to the IP layer, and is widely used in scenarios such as data center interconnection and enterprise LAN link protection.

Configuration Example

Section titled “Configuration Example”

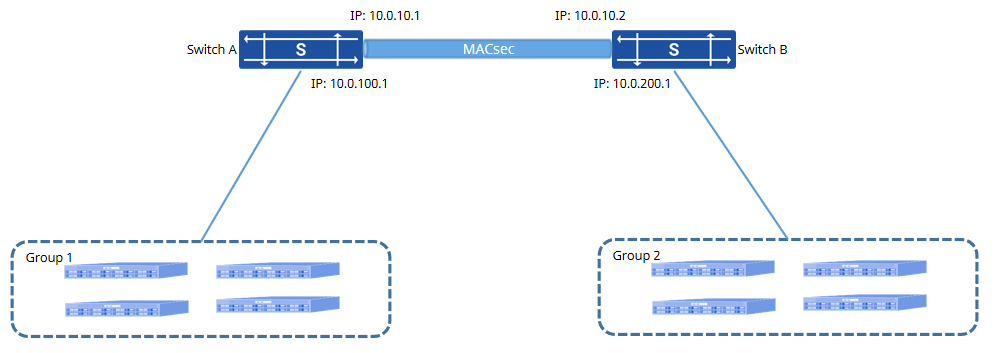

Switch A and Switch B are connected via a physical link. Two subnets, Group 1 and Group 2, of a private network running the IP protocol are interconnected by establishing a tunnel between the two switches using MACsec. Switch A and Switch B are interconnected.

Procedure

  1. Switch A configuration # Configure MACsec profile
sonic(config)# macsec enable
sonic(config)# macsec profile test
sonic(config-macsec-test)# mka cipher_suite GCM-AES-128
sonic(config-macsec-test)# mka policy security
sonic(config-macsec-test)# mka priority 10
sonic(config-macsec-test)# mka psk ckn 01234567890123456789012345678900 cak 01234567890123456789012345678900
sonic(config-macsec-test)# mka rekey_period 30
sonic(config-macsec-test)# mka send_sci enable
sonic(config-macsec-test)# exit

# Configure the interface IP address and bind the MACsec profile

sonic(config)# interface ethernet 10
sonic(config-if-10)# ip address 10.0.10.1/24
sonic(config-if-10)# macsec bind test
sonic(config-if-10)# exit
sonic(config)# interface ethernet 15
sonic(config-if-15)# ip address 10.0.100.1/24
sonic(config-if-15)# exit
  1. Switch B configuration # Configure MACsec profile
sonic(config)# macsec enable
sonic(config)# macsec profile test
sonic(config-macsec-test)# mka cipher_suite GCM-AES-128
sonic(config-macsec-test)# mka policy security
sonic(config-macsec-test)# mka priority 30
sonic(config-macsec-test)# mka psk ckn 01234567890123456789012345678900 cak 01234567890123456789012345678900
sonic(config-macsec-test)# mka rekey_period 30
sonic(config-macsec-test)# mka send_sci enable
sonic(config-macsec-test)# exit

# Configure the interface IP address and bind the MACsec profile

sonic(config)# interface ethernet 10
sonic(config-if-10)# ip address 10.0.10.2/24
sonic(config-if-10)# macsec bind test
sonic(config-if-10)# exit
sonic(config)# interface ethernet 15
sonic(config-if-15)# ip address 10.0.200.1/24
sonic(config-if-15)# exit
  1. Routing configuration for Switch A and Switch B # Configure static routes on Switch A
sonic(config)# ip route 100.0.200.0/24 10.0.10.2

# Configure static routes on Switch B

sonic(config)# ip route 100.0.100.0/24 10.0.10.1

Verify Configuration

  1. View device MACsec configuration
sonic# show macsec profile
Macsec Profile: test
Priority: 30
Cipher Suite : GCM-AES-XPN-128
Primary CAK : 01234567890123456789012345678900
Primary CKN : 01234567890123456789012345678900
Policy : security
Replay Protect : false
Replay Window : 100
Rekey Period : 1s
Send Sci : true
  1. Ping each other on Switch A and Switch B. You can ping normally through the MACsec tunnel.
sonic# ping 10.0.10.2
PING 10.0.10.2 (10.0.10.2) 56(84) bytes of data.
64 bytes from 10.0.10.2: icmp_seq=1 ttl=64 time=1.58 ms
64 bytes from 10.0.10.2: icmp_seq=2 ttl=64 time=0.638 ms
64 bytes from 10.0.10.2: icmp_seq=3 ttl=64 time=0.670 ms
64 bytes from 10.0.10.2: icmp_seq=4 ttl=64 time=0.685 ms
64 bytes from 10.0.10.2: icmp_seq=5 ttl=64 time=0.653 ms
--- 10.0.10.2 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4076ms
rtt min/avg/max/mdev = 0.638/0.846/1.587/0.371 ms


sonic# ping 10.0.10.1
PING 10.0.10.1 (10.0.10.1) 56(84) bytes of data.
64 bytes from 10.0.10.1: icmp_seq=1 ttl=64 time=0.694 ms
64 bytes from 10.0.10.1: icmp_seq=2 ttl=64 time=0.642 ms
64 bytes from 10.0.10.1: icmp_seq=3 ttl=64 time=0.665 ms
64 bytes from 10.0.10.1: icmp_seq=4 ttl=64 time=0.657 ms
64 bytes from 10.0.10.1: icmp_seq=5 ttl=64 time=0.629 ms
--- 10.0.10.1 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4087ms
rtt min/avg/max/mdev = 0.629/0.657/0.694/0.031 ms
  1. Use the terminal PCs under Group 1 and Group 2 to ping each other, and you can successfully ping through.
sonic# ping 10.0.100.2
PING 10.0.100.2 (10.0.100.2) 56(84) bytes of data.
64 bytes from 10.0.100.2: icmp_seq=1 ttl=62 time=1.18 ms
64 bytes from 10.0.100.2: icmp_seq=2 ttl=62 time=1.13 ms
64 bytes from 10.0.100.2: icmp_seq=3 ttl=62 time=1.70 ms
64 bytes from 10.0.100.2: icmp_seq=4 ttl=62 time=1.05 ms
64 bytes from 10.0.100.2: icmp_seq=5 ttl=62 time=1.71 ms
--- 10.0.100.2 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4003ms
rtt min/avg/max/mdev = 1.057/1.360/1.713/0.292 ms


sonic# ping 10.0.200.2
PING 10.0.200.2 (10.0.200.2) 56(84) bytes of data.
64 bytes from 10.0.200.2: icmp_seq=1 ttl=62 time=1.05 ms
64 bytes from 10.0.200.2: icmp_seq=2 ttl=62 time=0.917 ms
64 bytes from 10.0.200.2: icmp_seq=3 ttl=62 time=1.07 ms
64 bytes from 10.0.200.2: icmp_seq=4 ttl=62 time=0.977 ms
64 bytes from 10.0.200.2: icmp_seq=5 ttl=62 time=0.862 ms
--- 10.0.200.2 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4004ms
rtt min/avg/max/mdev = 0.862/0.978/1.079/0.084 ms
